20mm Check Valve 800 Pump
Rule Brings Pumping Power To Tight Spaces
The NEW Rule LoPro (low pro? le) bilge pumps are small enough to ?t into tight spaces in the bilge - yet they pack real pumping power at 900 gallons per hour - 3,400 litres per hour - 57 litres per minute. These new pumps include numerous features for ease of installation, ease of use and multiple options for use.
Up to 900 GPH - 3,400 LPH - 57 litres per minute at open ?ow
Up to 634 GPH - 2,400 LPH - 40 litres per minute at 1 metre head
Up to 418 GPH - 1,582 LPH - 26 litres per minute at 2 metre head
Maximum head height - 4 metres = 0 ?ow
Compact 60mm high (port to the side) 60mm wide (port upright)
Length - 195mm RWB5158 Std Model - 245mm RWB5159 Auto
Fully submersible - horizontal or vertical mounting
Ignition protected - won’t create a spark
Thermal cut-out to prevent overheating if run dry
Silicone blocked tinned 16 gauge wiring
Rotating discharge body swivels 180 deg for ease of installation
Threaded discharge nozzle with multiple hose ports included as standard in the package - 4 different hose ports provided - 1 each 20mm, 25mm & 28mm straight & 1 x 20mm 90 deg elbow
Straight discharge ports include a nitrile non-return check valve (for use on straight ports only - not to be used on 90 deg port)
3 year limited warranty
NON-automatic Standard LoPro Pump
Includes all features as detailed above
12 volt 4 amp use a 7.5 amp fuse
NON-automatic operation - If automatic required - purchase RWB5159 automatic version below - or use a Rule ?oat switch
RWB5158 NON-automatic Rule LP900D LoPro bilge pump 12volt
Replacements / Spares
SKU
Details
SP843
Spare hose barb straight 20mm
SP844
Spare hose barb 90 degree 20mm
SP845
Spare hose barb straight 25mm
SP847
Spare hose barb straight 28mm
SP852

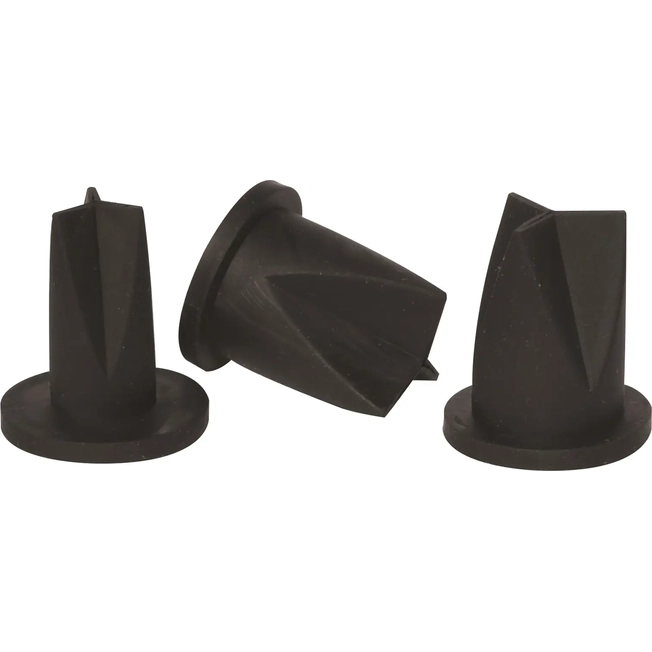

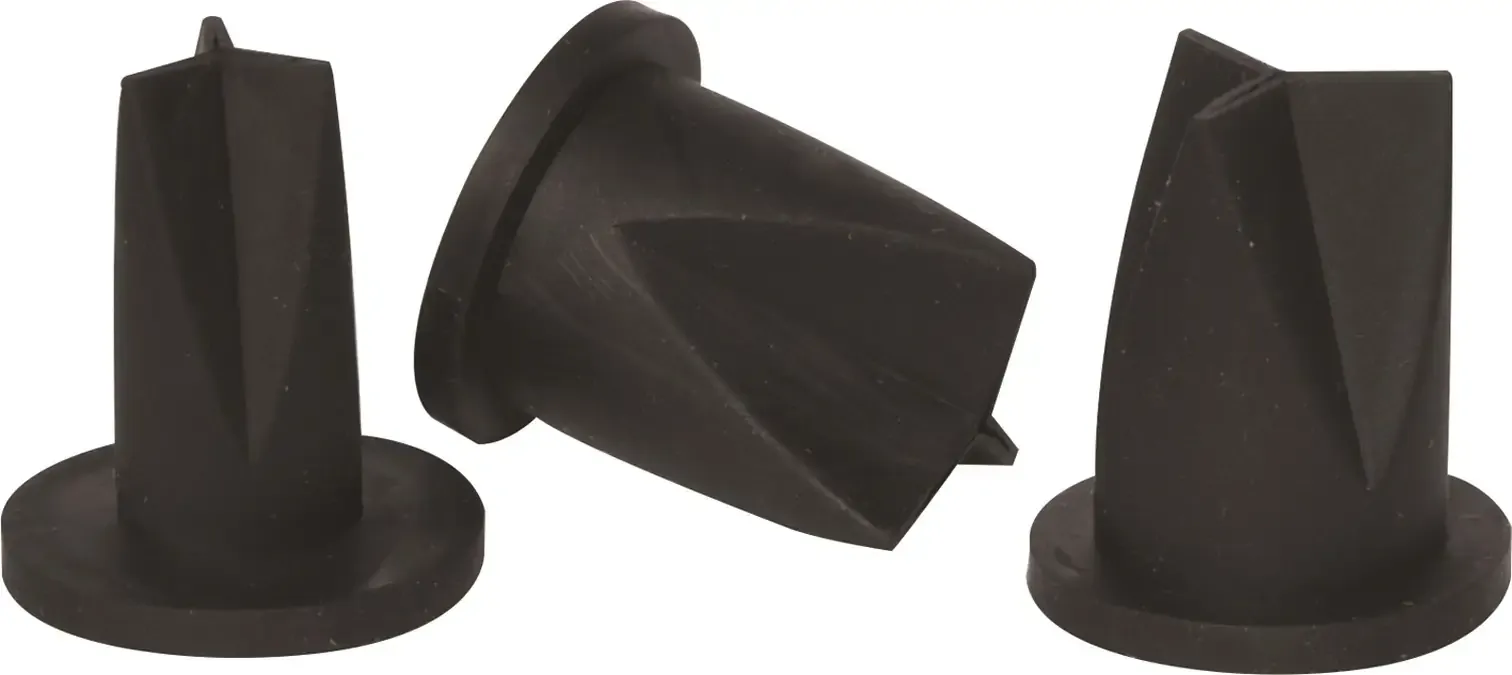

Replacement non-return check valve suit 3/4" 20mm
SP853
Replacement non-return check valve suit 1" 25mm
SP854
Replacement non-return check valve suit 1 1/8" 28mm
