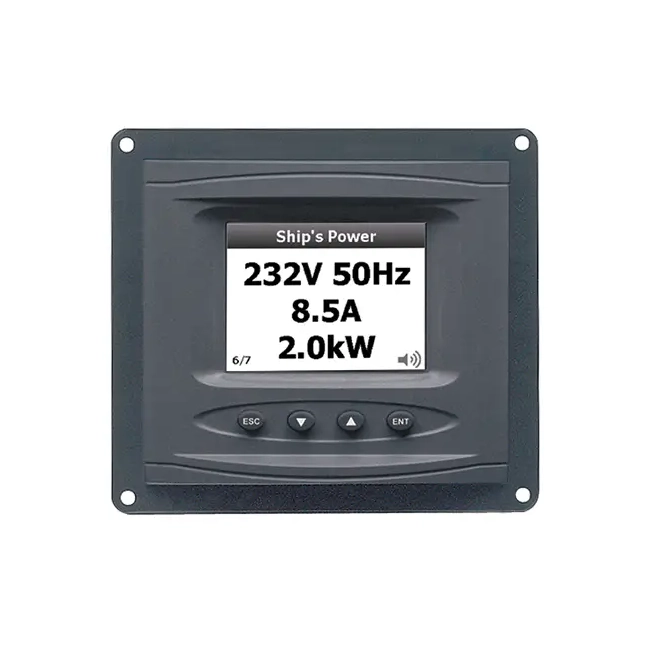

BEP AC Digital Monitoring System Designed and manufactured by BEP, this state of the art full colour AC monitor provides a range of system monitoring functions suitable to today?s modern vessels. With the complexities of modern AC electrical installations and the need for a wider array of monitoring combinations the new ACSM provides a functional multi-purpose display system suitable for a variety of applications. The ACSM display features a clear, extra large type face allowing for more detailed on-screen information and increased clarity. The simple menu, positive touch buttons and back lit screen make the multi-function monitoring system easy and intuitive to use. When fitted, the gasket provides a water ingress protection level of IPX5 (Protection against low pressure jets of water) for AC and DC systems monitors. Monitor: - 2.8" Colour QVGA LCD display - Input voltage 8-32VDC - AC volts, amps, frequency and true power Features: - Three generic user configurable inputs - Displays data in analogue, digital and graphic forms - Output for load shedding - Programmable high/low audio/visual alarms for each input - Supplied Installation Kit Includes: - BLA Code 112888 ? AC Voltage transducer for up to 3 voltage inputs - BLA Code 112886 x 2 ? AC current transformer BLA Code Description Width mm Height mm Intrusion mm 113418 Surface mounted 89 99 12 113424 Panel mounted ACSM 600 127 115.55 20x Accessories 55-600-ACSM-kit Conversion Kit ? meter only + panel conversion 55-GAS-SM Spray Proof Gasket

SKU	BLA-113424
Brand	BEP
