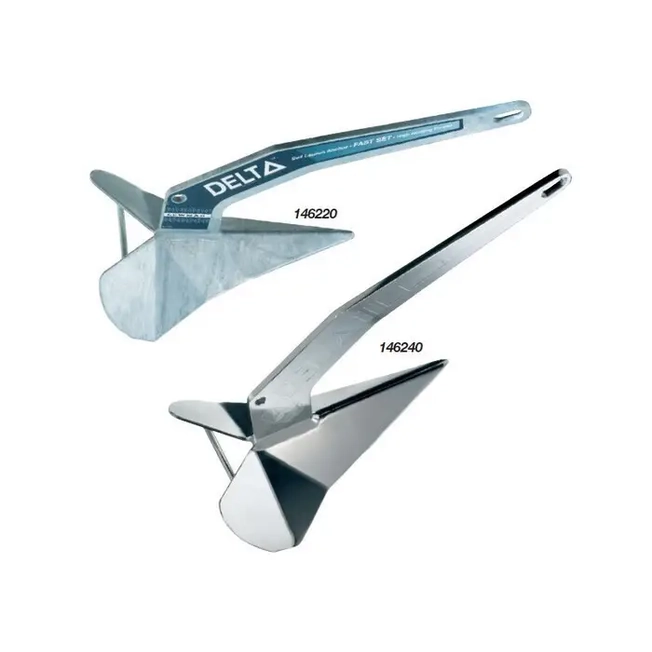

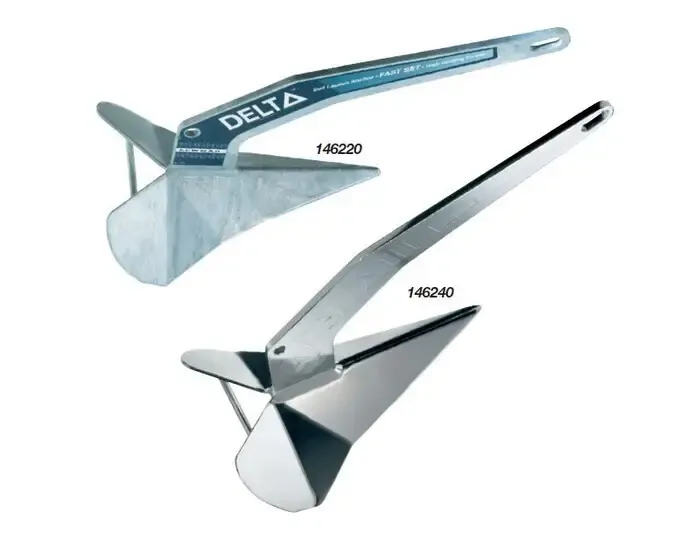

Lewmar® Delta® Anchor Lewmar® Anchor - Delta® Manganese Steel The original Delta® design from Lewmar® is recognised the world over as an outstanding anchor with exceptional holding power. Manufactured to exacting standards the Delta® is constructed from high grade manganese steel giving it maximum tensile strength. The unique shank profile and ballasted tip plus low centre of gravity and self-righting geometry ensure that the Delta anchor will set immediately. The design profile and ballasted tip also means that the anchor self launches with ease. The Delta?s consistent and reliable performance is backed by a lifetime guarantee against breakage1, has Lloyd?s Approval2 as a High Holding Power anchor and is specified as the primary anchor used by numerous national organisations worldwide. The Delta® anchor is also made available in premium grade Duplex/High Tensile stainless steel. BLA Code Gal BLA Code SS Anchor Weight Suggested Chain A mm B mm C mm D mm E mm kg lbs Size mm 146220 4 9 6-7 514 228 8 387 210 146222 146240 6 14 6-7 595 263 10 450 241 146224 146242 10 22 8 695 308 12 526 283 146226 146244 16 35 8 812 360 12 614 334 146228 146246 20 44 10 877 389 16 663 361 146230 146248 25 55 10 945 417 16 713 384 146233 146250 32 70 10 1026 455 26 774 417 146234 40 88 10 1099 489 20 885 446 1 Damage by deformation or bending is not covered by this guarantee. 2 Lloyd?s Test Certificate is available for individual anchors by arrangement.

SKU	BLA-146220
Brand	Lewmar
