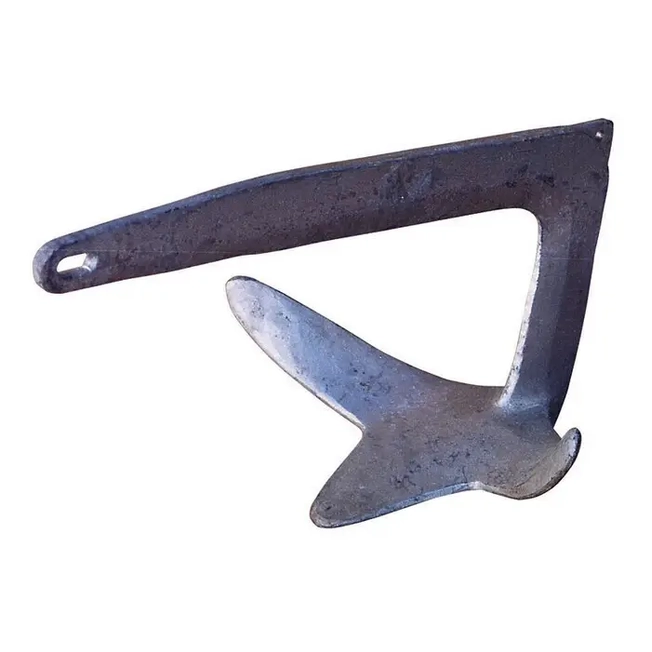

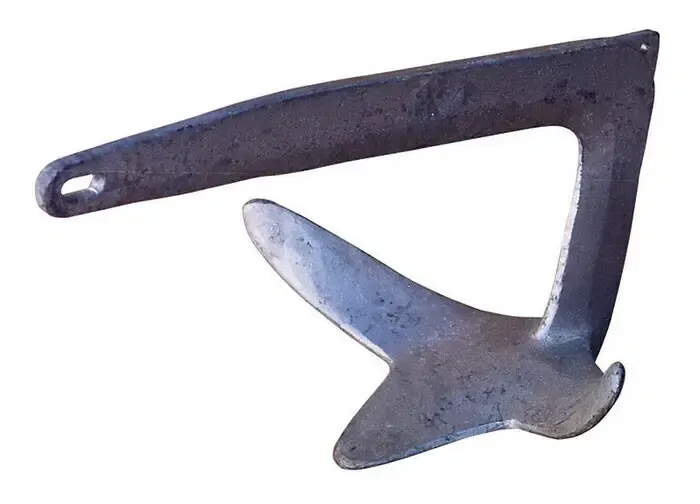

BLA Self Aligning Anchor - 316 Grade Stainless Steel & Galvanised Suited to sand and mud bottom. Heavy duty hot dipped galvanised finish, cast iron or cast 316 grade stainless steel construction. Self align anchors roll upright, irrespective of initial drop altitude. High holding power is obtained by the highly efficient fluke and shank design. Low retrieval force results from the short, broad, single fluke. Retrieval force is generally 30% of the prior holding power. BLA Code Material Weight Approx. kg Approx. Boat Length m A mm B mm C mm D mm 146202 Cast iron 5 7 230 470 305 415 146203 S/Steel 5 7 265 440 290 425 146204 Cast iron 7.5 8.5 270 535 355 470 146205 S/Steel 7.5 8.5 265 490 340 425 146206 Cast iron 10 10 300 585 385 525 146207 S/Steel 10 10 270 550 370 475 146208 Cast iron 15 12 330 625 420 550 146209 S/Steel 15 12 325 630 450 510 146210 Cast iron 20 14 365 670 480 600 146211 S/Steel 20 14 375 675 470 580 N.B. Boat size suggested is for average variables and appropriate anchor rode. Final selection should be based on experience.

SKU	BLA-146202
Brand	BLA
