Canopy Tube Insert SS 20
A range of very robust canopy fittings made from mirror polished cast 316 grade stainless steel. Virtually unbreakable and non-corrosive to give many years of reliable service.
2 types
STANDARD heavy duty
EXTRA heavy duty.
Heavy Duty Stainless Steel Canopy Fittings
Type
SKU
Suits Tube Dia
Total Size
Fastening Holes

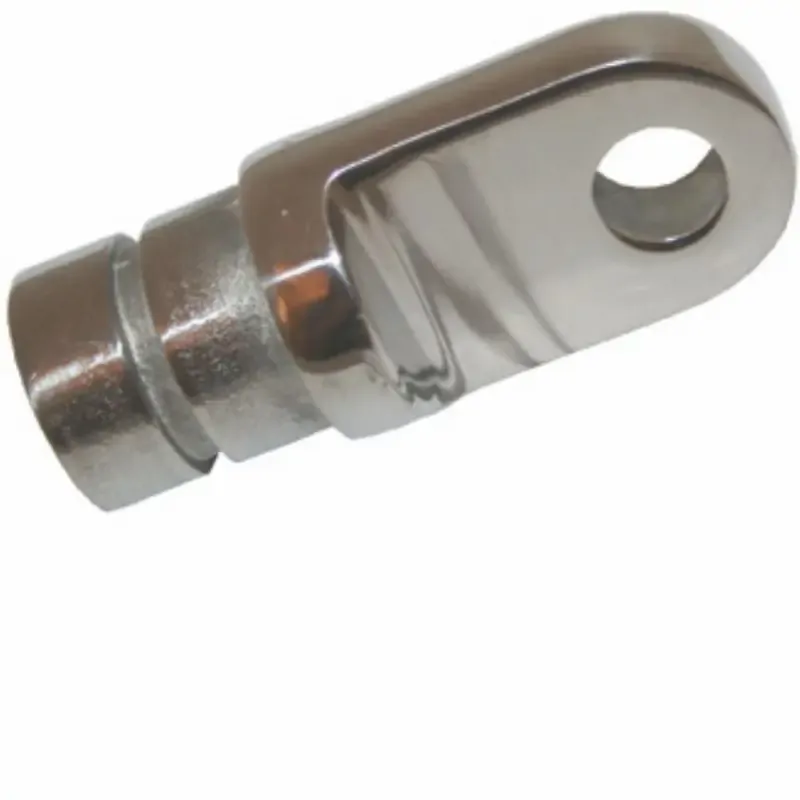

Bow End Insert
Fits on inside of tube.
RWB1675
16mm I.D
48x18mm
N/A
Canopy Tube Ends
Fits on outside of tube. 3 tube O.D sizes.
RWB1678
RWB1679
RWB1680
20mm O.D
22mm O.D
25mm O.D
60 x 25mm
60 x 29mm
60 x 32mm
N/A
N/A
N/A
Tube Knuckle Clamps
Fits on outside of tube. 3 tube O.D sizes
RWB1681
RWB1682
RWB1683
20mm O.D
22mm O.D
25mm O.D
26x26x45mm
29x29x53mm
32x32x56mm
N/A
N/A
N/A
Canopy Deck Mounts
Standard Type
RWB1684
56 x 12 x 35mm
2 x 5mm
Standard type with 10 degree inclined top
RWB1689
56 x 18 x 35mm
2 x 5mm
Standard type with quick release toggle pin
RWB1685
56 x 12 x 35mm
2 x 5mm
Concave Rail Mounts - Concave bases for rail mount on 20mm - 25mm tube
Standard concave base
RWB1686
56 x 20 x 37mm
2 x 5mm
Concave base with quick
release toggle pin
RWB1687
56 x 20 x 37mm
2 x 5mm
Replacement quick
release toggle pin only
RWB1688
56 x 20 x 37mm
2 x 5mm
Canopy Side Mount
RWB1690
51 x 23 x 32mm
2 x 5mm
EXTRA Heavy Duty Stainless Canopy Fittings
Type
SKU
Suits Tube Dia
Total Size
Fastening Holes
Tube End Cap
RWB1694
25mm O.D
60 x 32mm
N/A
Tube Clamp
RWB1695
25mm O.D
31 x 30 x60mm
N/A
Deck Mount
RWB1696
53 x 25 x30mm
2 x 6mm
Side Mount
RWB1697
72 x 47 x32mm
4 x 6mm
SP520 - Replacement Grub Screw
