Product Overview

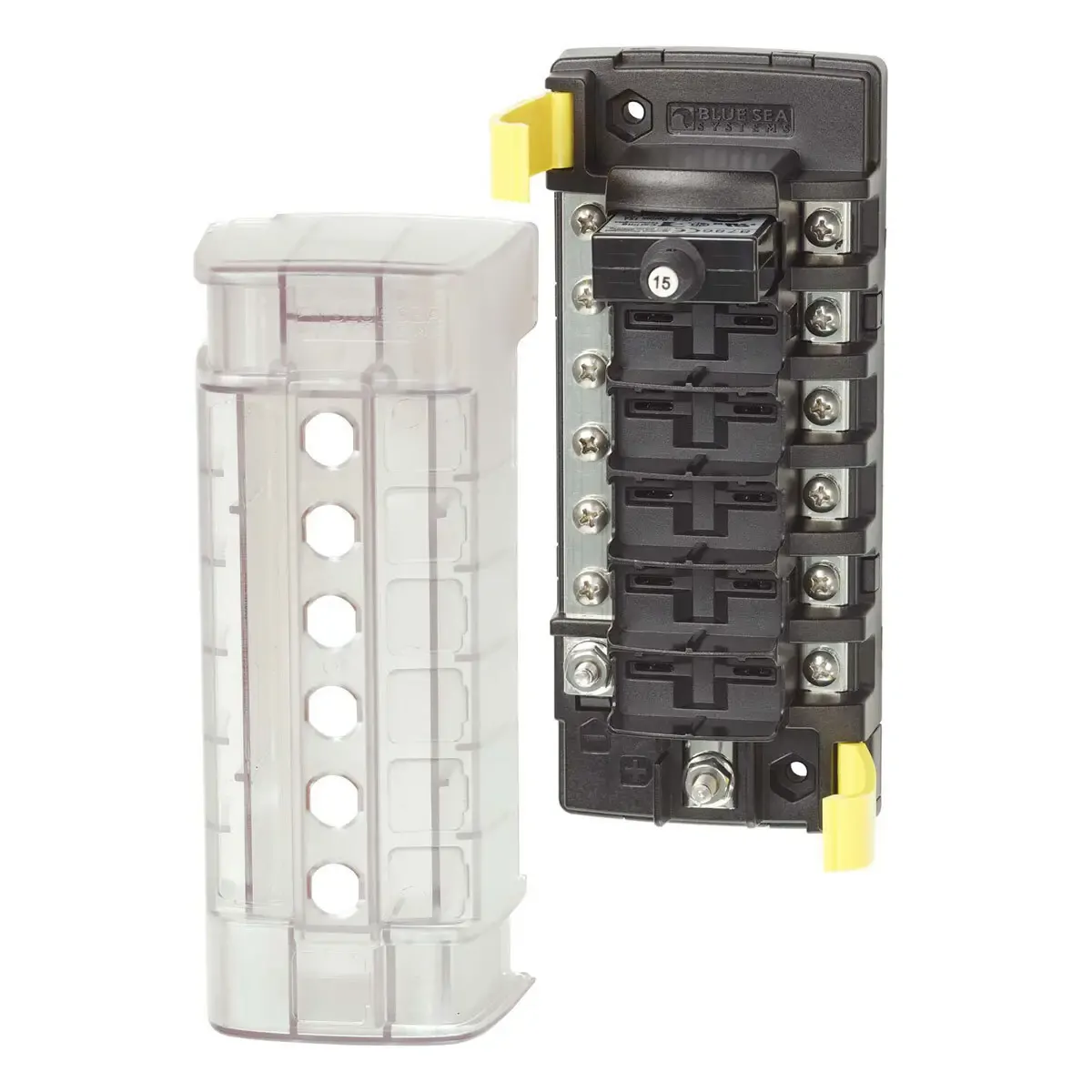

Blue Sea Systems ST-CLB Circuit Breaker Blocks
Compact surface mount solution providing secure screw termination where Push Button Reset-Only CLB Circuit Breakers are desired. For use with Blue Sea Systems CLB circuit breakers with quick connect terminals
Features:
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
- Circuit breakers sold separately
- All circuits have common source
- Integrated negative bus
Specifications:
- Voltage Max operating 32VDC
- Amperage Max: Operating 32A per circuit, 100A per block
- Breaker Type- Push Button Reset CLB breakers with Quick connect terminals
- Screw Terminals: #8-32
BLA Code Length mm Width mm Height mm
BS-5052B 170 71 67
| SKU | BLA-BS-5052B |
| Brand | Blue Sea Systems |
