Product Overview
Blue Sea Systems 285 Series Circuit Breakers
Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.
- Visible yellow reset lever shows open condition
- Trip-free design cannot be held closed after trip
- Drop in replacement for 185 Series Circuit Breakers
- 3,000A AIC for medium battery banks
Specifications
- Interrupting Capacity 3,000A @ 48V DC?
- Voltage Max. Operating 48V DC
- Temperature Min. Operating -40°C
- Temperature Max. Operating 85°C
- Type Thermal
- Class Type III ? Switchable/Manual Reset ? Trip Free
- Terminal Stud M6 (accepts 1/4" Ring Terminal)
- Terminal Stud Torque 50 in-lb (7.9 Nm)
- Mounting Hole Accepts 1/4" screw (M6)
BLA Code Bulk BLA Code BLA Code Amps
Surface Mount Surface Mount Panel Mount
BS-7180 BS-7080 25
BS-7181 BS-7081 30
BS-7182 BS-7182B BS-7082 40
BS-7183 BS-7183B BS-7083 50
BS-7184 BS-7184B BS-7084 60
BS-7185 BS-7085 70
BS-7186 BS-7186B BS-7086 80
BS-7187 BS-7187B BS-7087 100
BS-7188 BS-7088 120
BS-7189 BS-7089 150
| SKU | BLA-BS-7181 |
| Brand | Blue Sea Systems |
Ratings & Reviews
Be The First To Review This Product!
Help other Marine Depot users shop smarter by writing reviews for products you have purchased.

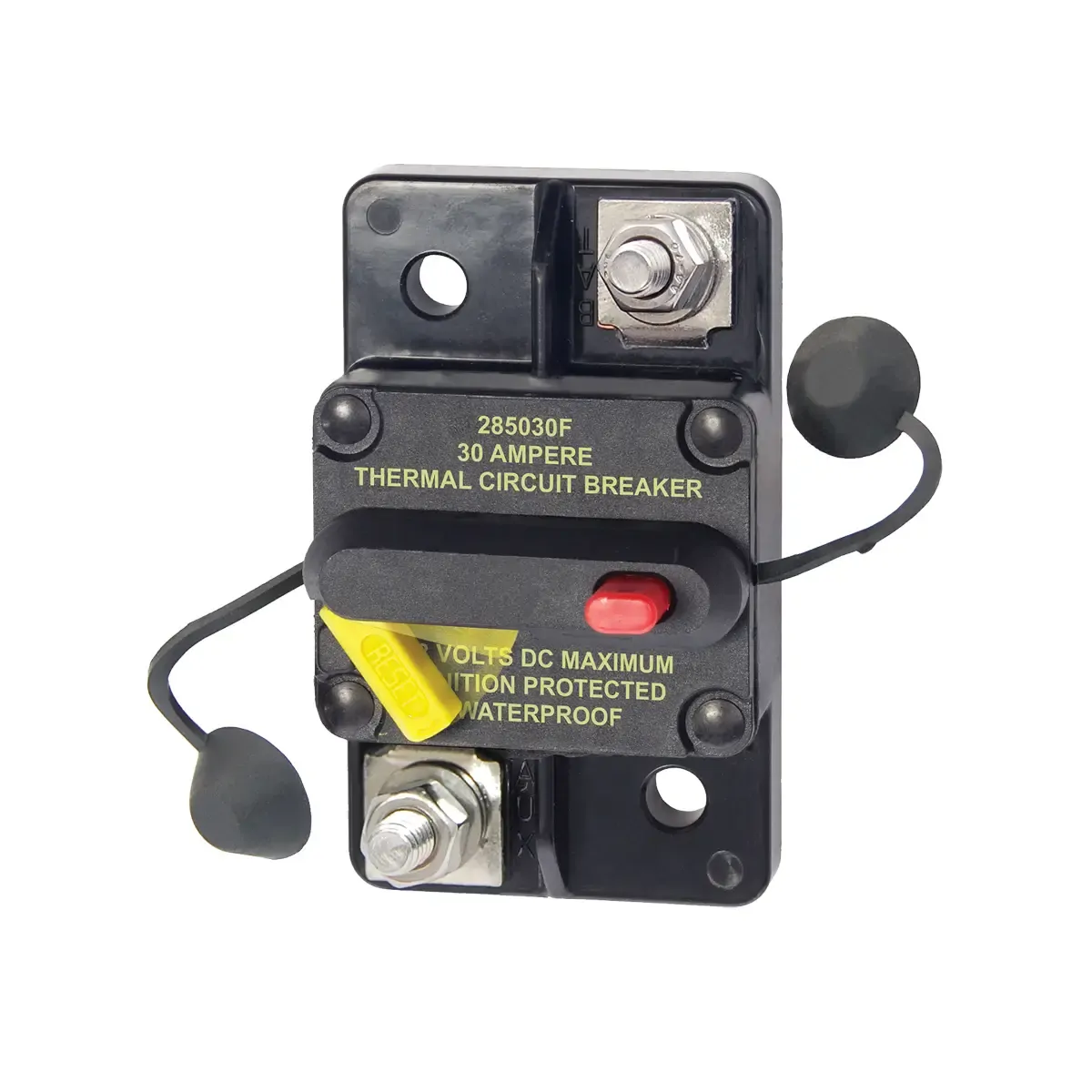

Blue Sea Systems Circuit Breaker, Bus 285 Sfcmt 30 A
