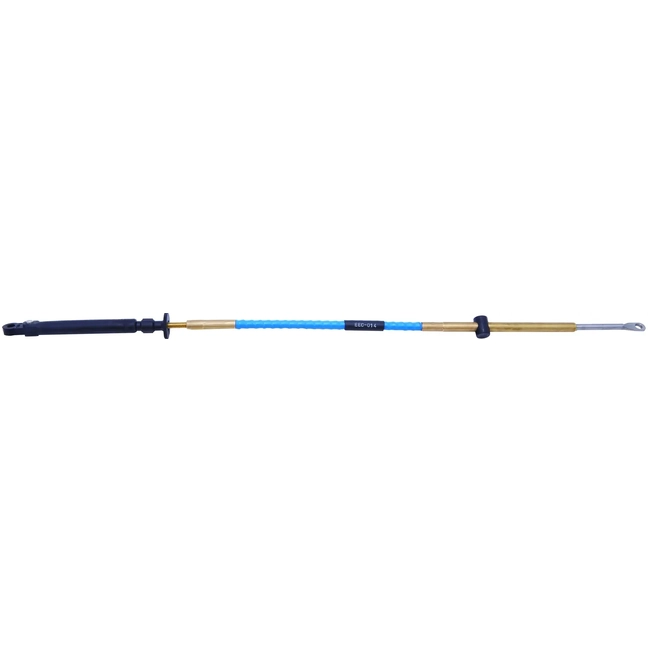

RWB ControlCable Engine Control Cable OMC EDGE 22ft

Product Overview

Multiflex "EDGE" premium flex control cables have become so popular they are now being made right here in Australia. These high quality low-friction control cables are now available ex our Sydney warehouse stock from 6 Ft to 50 Ft length. Shorter length and longer length cables from 52 Ft to 74 Ft are available to order - and can normally be supplied in just a few days from order.

EDGE cables offer -

Higher efficiency EDGE low friction cable - the splined core has only 6 touch points and 21 individual outer lay wires to provide less contact and therefore lower friction
Lower backlash - EDGE cables are built allowing optimum gap between the inner core & liner resulting in less backlash
Tighter bend radius - EDGE cables offer significantly tighter bend radius and flexibility. Minimum bend radius 100mm.
Longer cable life - the special binder and lifetime lubricated core ensures EDGE cables are robust and last longer.

Standard Red Jacket Universal Control Cables
An economical universal cable with red jacket similar to the Morse 33C type cable. 8.5mm diameter outer jacket. 10-32 UNF stainless steel threaded ends. Suits inboard and outboard motor applications. For very long or complex runs use premium cables below. Size range 6 feet (1.83 Mtr) to 18 feet (5.49 Mtr) RWB7500- RWB7512.
EDGE Premium Universal Control Cable
Australian made premium flex cable. Very flexible and very strong ensuring minimum friction and maximum efficiency. Ideal for long or complex runs with tight radius bends. Blue outer jacket with 10-32 UNF stainless steel threaded ends. Large size range from 6 feet (1.83 Mtr) to 74 feet (22.56 Mtr) RWB7528 - RWB7579.
Standard OMC Type Control Cable - Pre 1979
Standard cable with 7mm dia outer jacket. Suits OMC Johnson/ Evinrude outboard motors PRE 1979. Exceeds engine manufacturers specifications. Size range 10 feet (3.05 Mtr) to 16 feet (4.88 Mtr) RWB7400 - 7406.
EDGE OMC Type Control Cable - After 1979
Australian made premium flex "EDGE" cable with non-corrosive brass and plastic ends. Suits OMC Johnson/Evinrude/BRP motors 1979 to current. Exceeds engine manufacturers specifications. Size range 8 feet to 24 feet RWB7760 - RWB7775.
EDGE Premium Mercury Type Control Cable
Australian made premium flex "EDGE" cable with non-corrosive brass and plastic ends. Suits Mercury / Mercruiser motors 1965 to date (except Gen 11). Exceeds engine manufacturers specifications. Size range 8 feet to 24 feet RWB7740 - RWB7755.
EDGE Gen 11 Mercury Type Control Cable
Australian made premium flex "EDGE" cable with non-corrosive brass and plastic ends. Suits Mercruiser and Mercury Generation 11 motors. Exceeds engine manufacturers specifications. Size range 8 feet to 24 feet RWB7452 - RWB7468.
EDGE MARINER Control Cable
Australian made premium flx "EDGE" cable with non-corrosive brass and plastic ends. Suits MARINER motors. Exceeds engine manufacturers specifications. Size range 12 feet to 18 feet RWB7473 - RWB7479.

SKU	RWB7774
Brand	RWB
