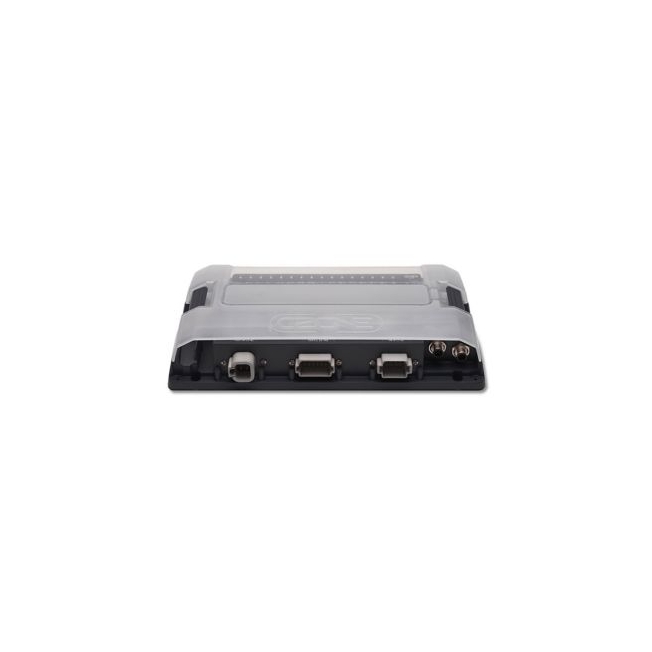

CZoneTM Contact 6+ Utilising proven CZone digital switching technology the Contact 6 Plus is a robust and affordable digital switching solution. Featuring 6x 15A solid state ignition protected fused outputs with circuit bypass for system redundancy. The Contact 6 Plus can be networked into an existing CZone system or installed stand alone with the CZone Waterproof Keypads or compatible Multi-Function Displays. Features: - Affordable digital switching solution - Plug and play out of the box configurations - PWM circuit dimming - Equipped with advanced core CZone feature set like timers and modes - ABYC compliant ignition protected internal fuse panel with mechanical circuit bypass - Standalone system when integrated with CZone membrane switch Panels BLA Code 112814 Output Channels 6 x 15A Dimmable Circuit Protection ATC Fuse with blown fuse alarms NMEA2000 PGN Output NMEA2000 network Battery Volts Output wire range 0.5 - 6mm (24AWG - 8AWG) Maximum Current 60A Total Power Supply M6 (1/4") Positive terminal Voltage 9-32V (with Power Available LED and Voltage Monitoring) Circuit Bypass Mechanical Protection/Bypass All Output Channels Ingress Protection IPx5 (mounted vertical on bulkhead and flat) Communication NMEA 2000 Certification CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected Accessories: SP11112814 Contact 6+ Connector & Seal Kit

SKU	BLA-112914
Brand	BLA
