Product Overview

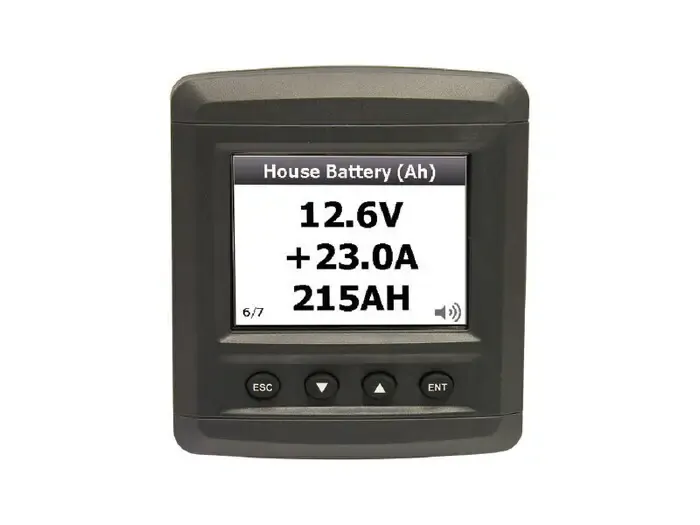

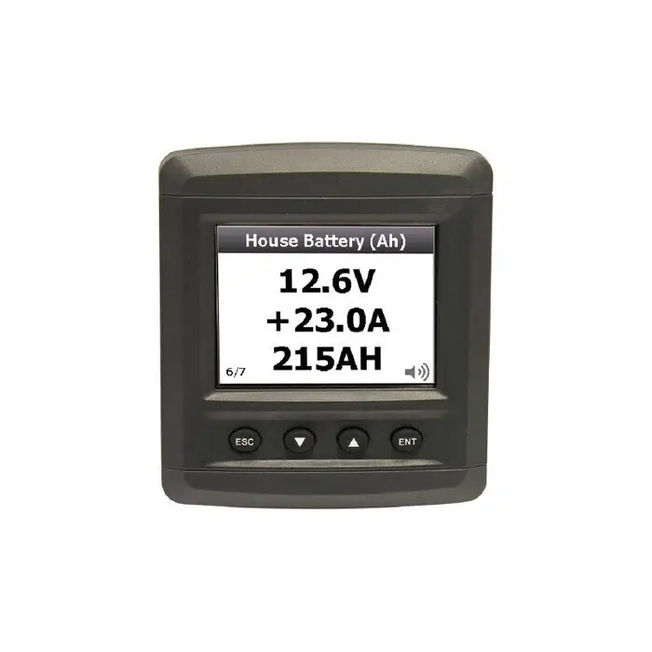

BEP DC Systems Monitor (DCSM)
This state of the art full colour DC monitor provides a range of system monitoring functions suitable for today?s modern vessels. With the complexities of modern DC electrical installations and the need for a wider array of monitoring combinations the new DCSM provides a functional multi-purpose display system suitable for a variety of applications. With the development of new, more accurate tank monitoring technology, BEP is now better able to satisfy multiple information requirements for such things as fuel, freshwater, grey water and black water.
The DCSM display features a clear, extra large type face allowing for more detailed on-screen information and increased clarity.
The simple menu, positive touch buttons and back lit screen make this multi-function monitoring system easy and intuitive to use.
Features:
- Eight generic, user configurable inputs
- Programmable high/low audio/visual alarms for volts, amps and tank levels
- Backlit keypad and dimmable screen
- Can be panel or surface mounted
Kit Includes:
- BLA Code 113403 - 5m x two core pre-terminated screened cable
- BLA Code 113457 - 450A / 50 mV shunt
Monitor:
- 2.8" Colour QVGA LCD display
- Input voltage 8-32VDC
- Charge/discharge amps for up to two banks
- Capacity remaining in A/h and %
- Battery condition
- Tank fluid level
- Circuit status
DC Power Meter
- Displays voltages of multiple battery banks (0-32V DC)
- Displays charge and discharge (amps) of 2 battery banks
- Displays battery capacity in amp hours
- High/Low level alarms
Display Type
- Configure the DCSM to show the data in analog, digital and graphic form
Circuit Status
- View the status of important circuits (On/off)
- In graphic and numeric form
Tank Level
- View tank level information for multiple tanks in numeric and graphic forms. Resetable when leaving boat
BLA Code Description Mounting Inclusions Volt DC Width mm Height mm Intrusion mm
113386 DCSM Surface mounted 1x shunt and cable 8-32 89 99 12
113408 DCSM Panel mounted 1x Shunt 8-32 127 115 -
Accessories
113385 Meter only
113383 600 DCSM kit ? meter only + panel conversion for old DCM to DCSM
55-GAS-SM Spray Proof Gasket
SKU | BLA-113386 |
Brand | BEP |
