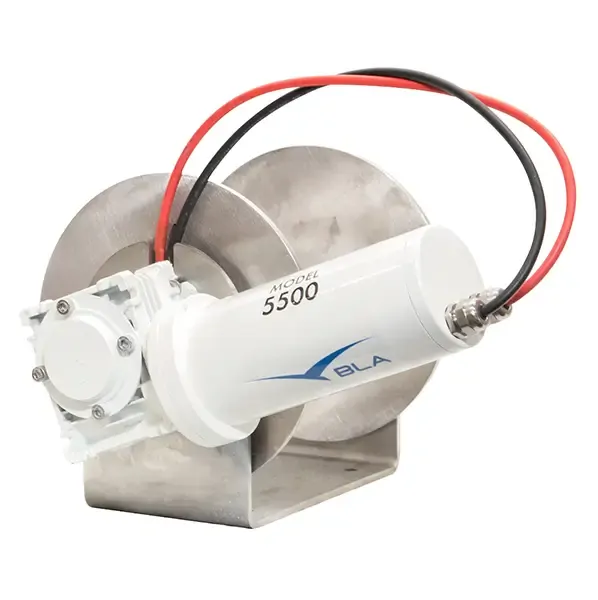

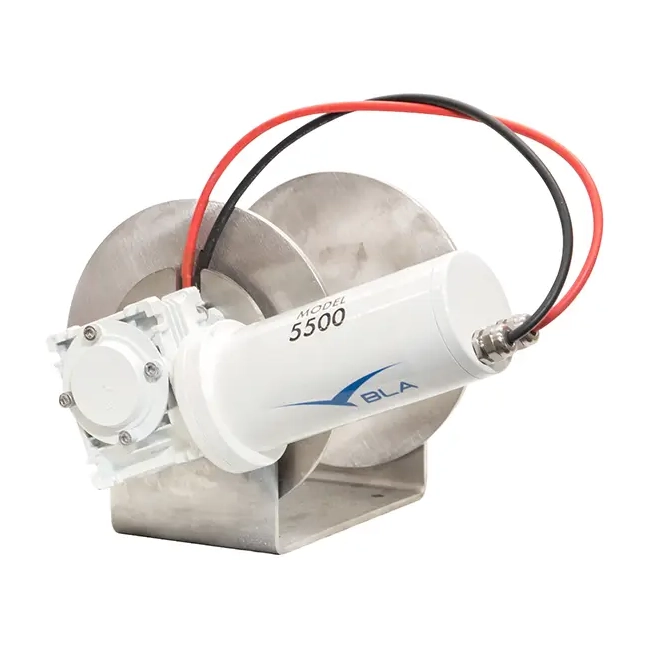

BLA Drum Winch All BLA Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and comes complete with double braid rope, chain and switchgear for hassle free anchoring. Features: - Motor is fully sealed from corrosion/water. No exposed terminals - Custom rope kits available to suit any anchoring depth - 3 year warranty - Australian designed - Motor & gearbox can be adjusted in 12 positions to drum - Retailed packaged 153100 Kit Includes: - Motor and gearbox - 316 Grade stainless steel drum - Backing plate and bolts - Pre-wired switchgear - Wiring loom kit - Double braid rope and chain kit 153110, 153120 & 153130 Kit Includes: - Motor and gearbox - 316 Grade stainless steel drum - Up/down solenoid switch - Circuit breaker - Double braid rope and chain kit - Backing plate and bolts - Guide roller BLA Code Winch Model Drum Size mm Max Vessel Size m Rope Length Chain Length m Total Length m A mm B mm C mm D mm E mm 153100 4500 180 4.5 45m x 6mm 5 45 321* 317 180 190 120 153110 5500 200 5.5 64m x 6mm 6 70 332* 315 200 210 120 153120 7000 250 7 93m x 6mm 7 100 370* 377 240 250 140 153130 8500 300 8.5 92m x 8mm 8 100 390* 377 280 300 140 Accessories: 153140 Guide roller 153142 Hawse pipe 145500 Double braid rope and chain kit - 50m x 6mm 145508 Double braid rope and chain kit - 140m x 6mm 145502 Double braid rope and chain kit - 70m x 6mm 145504 Double braid rope and chain kit - 100m x 6mm 145506 Double braid rope and chain kit - 100m x 8mm N.B. * measurement does NOT include waterproof glands or wire 153110 only has 8 mounting positions at time of printing

SKU	BLA-153110
Brand	BLA
