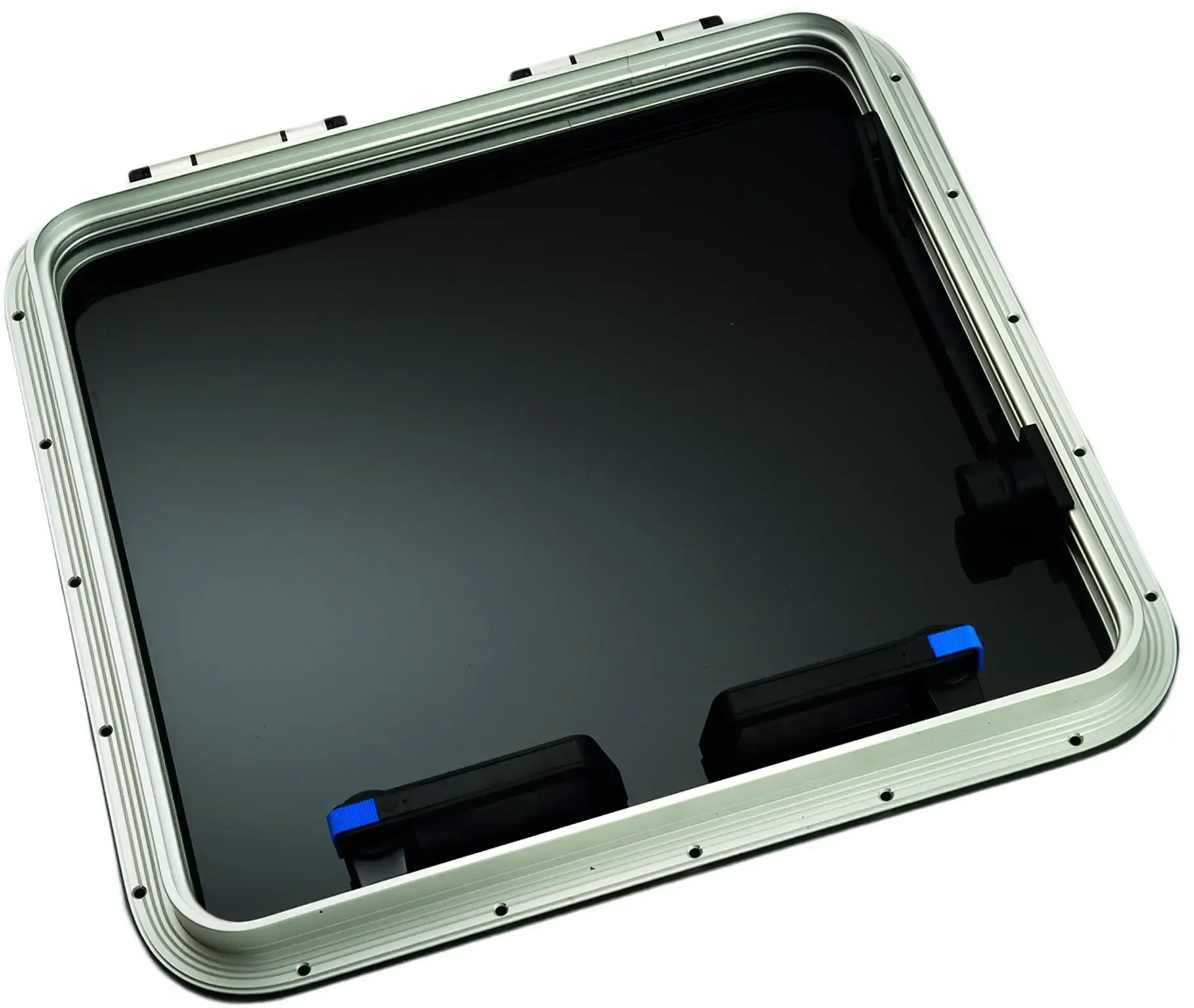

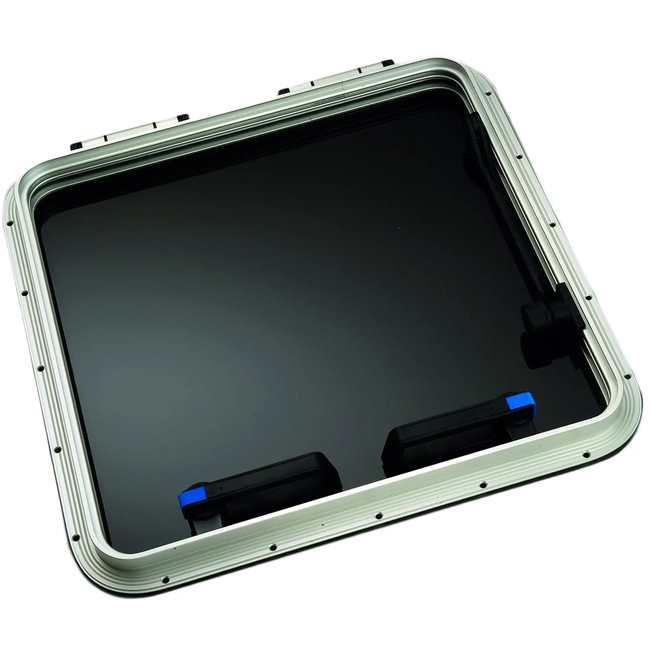

GEBO Part Number Hatch: 80.30.10.00, Cut-out Size L x W mm: 900 x 600, Radius mm: 55, Overall Size L x W mm: 955 x 655, Radius mm: 83, Acrylic mm: 15, Mosquito Screen: , Inner Rim Aluminium: , Fly-Blind Combo:

The GEBO standard range of hatches are GEBO's traditional PREMIUM range of hatches.They have a smooth on-deck profile and the frame has been extended to fit flush against the base mounting. A deep groove in the lower frame keeps water from coming in when the hatch is open. 100% watertight when closed. The Gebo standard range is available in 2 styles - with 5mm deep inner flange - or No flange - where the base sits flat on deck.

Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability and low maintenance requirements

All GEBO hatches are CE class-A ocean certified

2 year warranty under normal use

40mm height above deck. Silicone rubber seals

2 styles - Internal flange 5mm deep - or NO flange style

Durable 10mm to 15mm thick smoked grey acrylic panels

Heavy duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position

Not a single catch, lip or knob for sails or rope lines to get caught on

Inside / outside opening handles with sturdy blue locking button

All hinges and metal parts are made from non-corrosive materials

Mosquito/fly screens, inner dress rims and spare parts available

Hatches WITH flange have a 55mm cut-out radius

Hatches WITHOUT flange have a 30mm cut-out radius (except 6033)

SKU	RWB6040
Brand	RWB
