Product Overview

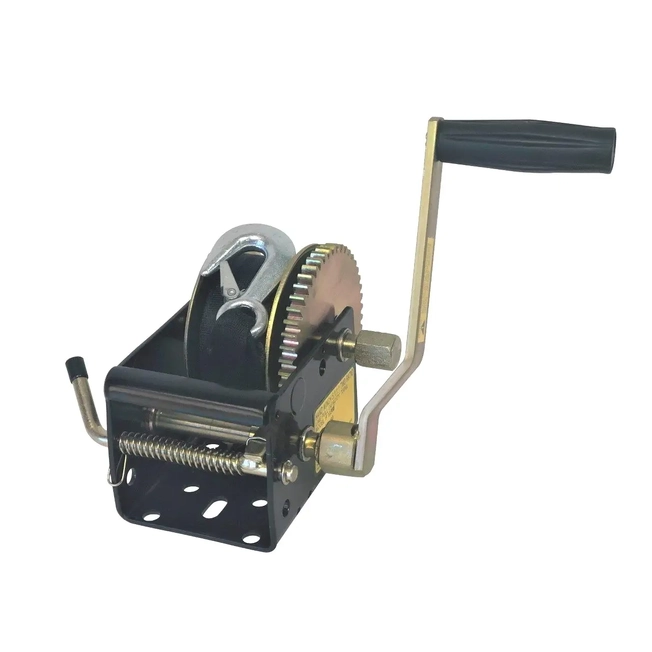

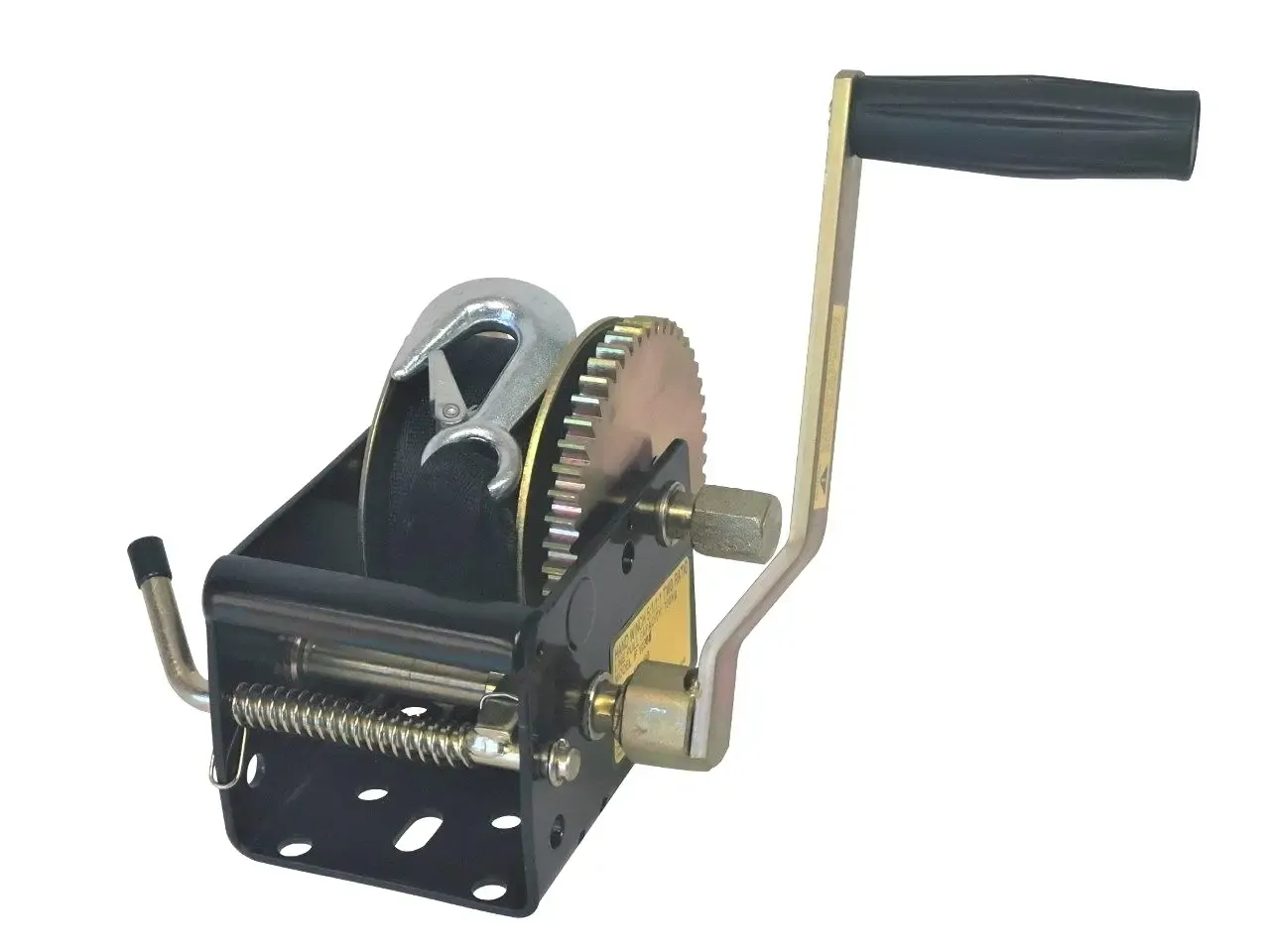

Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1 (700kg) - 6m Webbing Strap & Snap Hook

Note: This winch are not to be used for lifting.
This winch is recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles.
For fast slack cable retrieval, use the 1:1 ratio to retrieve slack cable, when the cable becomes under a load too heavy to operate then use the 5:1 to complete the retrieval of the boat.
The winch is equipped with removable handle for change of ratio option.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.

Features

Heavy duty 4mm winch body
Steel bushes
Machined gears
Spare parts available
Electroplated zinc cobalt handle
Powder coated finish
Detachable handle
For maximum capacity, winches are to be installed using the four hole bolt down pattern
Marine Winches are not intended as a load securing device
Winches are not intended for the transportation of people

GEAR RATIO     5:1 / 1:1
APPLICATION:     PULLING
Rated capacity:     700kg (6860N)
Mass (Winch only):     4.1kg
Type of Ratchet:     Lever Action
Drum diameter:     50mm
Flange diameter:     127mm
Drum width:     52mm
Max. effort on handle at rated load:     25kg

SKU ANS-WB-F10206
Brand Jarrett
