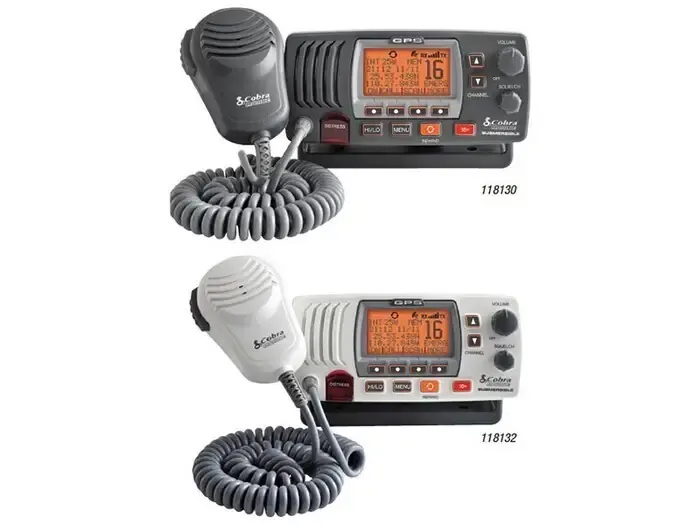

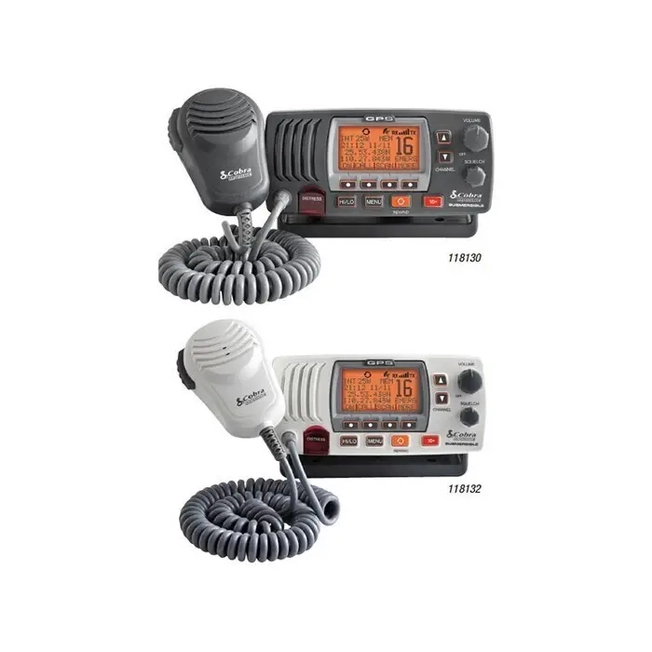

Cobra Marine VHF Radio - Class-D Fixed Mount With GPS The latest in Class-D Digital Selective Calling (DSC) Technology. Cobra Marine?s complete line of handheld & fixed mount marine products offer innovative, easy to use features that help keep you safe during your boating voyage. This technology is all backed by 50 years of Cobra Marine® quality. Features: - Built in GPS Receiver - Simply connect the radio to power and the radio will know your location - Rewind-Say-Again® - Replay missed VHF calls. Automatically records the last 20 seconds with a digital voice recorder - Large LCD screen - Large and bright LCD screenfor easy viewing - PA Output - PA function for public address to external speaker (117130/32 recommended) - Submersible - Designed to IPX8 (JIS8) standards - Softkey Operation - Easily make calls, activate advance features and navigate through menus - Radio Check - Checks battery voltage when transmitting, RF power output, and antenna output BLA Code Colour Face Plate Dimensions W x D x H cm 118130 Dark Grey 15.9 x 15.5 x 7.5 118132 White 15.9 x 15.5 x 7.5 Unit Specifications DSC (Digital Selective Calling) Compliant with the latest specifications for Class-D VHF Radios. Digital Selective Calling allows you to send a distress signal at the touch of a button or exchange position information with other boats or stations. DSC features on this Class-D radio include; A Dedicated Channel 70 (DSC Channel) Receiver, GPS Position Display Capability, Illuminated Distress Button, Easy MMSI Entry, Position Send and Request, Position Input Reminder, Coast Guard DSC Check Capability, etc. 1 or 25 Watts Dual output power for short and long communication. International, U.S.A. & Canada Channels Allows operation on any of the three (3) different channel maps established for these areas. Rewind-Say-Again® Replay missed calls. Automatically records the last 20 seconds of incoming radio transmissions. Handy when in noisy conditions. Radio Check Checks battery voltage when transmitting, RF power output, and antenna output. Instant Channel 16 Instant access to channel 16 for emergency situations. GPS Inside Simply connect the radio to power and the radio will know your location. You can send your position information in case of emergency, or exchange position information with other boats. Dual Watch Monitors two (2) channels at once - Channel 16 and one (1) user selected channel. Scan / Memory Scan Scan all channels to find conversations in progress, or scan channels placed into memory. Channel Names Friendly VHF channel names under the channel number. Signal Strength Meter Shows the strength of incoming signal. Illuminated Keys Allows high visibility of keys. Illuminated LCD Display: Large See radio settings from practically anywhere with the largest LCD available on a fixed radio. Noise Cancelling Microphone Blocks background noise. External Speaker and PA Speaker Connect an external speaker and a PA (Public Address) speaker. NMEA In and Out NMEA in for GPS input. NMEA output to display other vessels and their information transmitted by DSC on your chartplotter. Submersible Meets JIS8/IPX8 standards; Submersible for 30 minutes in 1.5 metre deep water. External Alarm Input Senses the alarm from your chartplotter and uses the speaker on the radio to amplify the alarm for waypoint arrival, MOB, etc. ATIS Capable of operating within the Automatic Transponder Identification System. ATIS includes data at the end of a transmission for station identification. Included Accessories Flush & Surface Mount Kit Easy installation of radio in or on almost any flat surface with supplied hardware. NMEA Input Cable Allows input from NMEA 0183 devices. General Number of Channels All: International, U.S.A. & Canadian Channels Channel Spacing 25 kHZ Modulation 5 kHz Max. Input Voltage 13.8 VDC Current Drain: Stand-by Receive Transmit 200 mA 300 mA 5 A @ High Power 1 A @ Low Power Temperature Range -20ºC to 60ºC Unit Dimensions 159mm x 57mm x 180mm (6.25? x 2.25? x 7.125?) Unit Weight (Lbs) 1100g (2lbs., 6.8oz.) GPS Receiver 56 channels Acquisition Times: Hot Warm Cold Update Rate Nominal: < 1 second, Limit: +/- 5 seconds Nominal: < 33 second, Limit: +/- 5 seconds Nominal: < 35 second, Limit: +/- 10 seconds Up to 5 Hz Antenna Type Internal patch antenna GPS receiver first lock sensitivity Nominal: -144dBm, Limit: 142dBm GPS receiver tracking sensitivity Nominal: -160dBm, Limit: 155dBm Differential System Compatibility EGNOS (Europe), WAAS (United States), MSAS (Japan), GAGAN (India) NMEA Info: Output Specification Selectrical Standard NMEA Sentences NMEA 0183- ASCII serial output EIA-422 DTM, GGA, GLL, GRS, GSA, GSV, RMC, VTG Receiver Frequency Range 156.025 to 163.275 MHz Receiver Type Double Conversion Super-Heterodyne Sensitivity: 20 dB Quieting 12 dB Sinad 0.35 uV 0.30 uV AF Output 4 Watts @ 8 Ohms Transmitter Frequency Range 156.025 to 157.425 MHz RF Output Power 1 or 25 Watts Spurious Emissions -75 dB @ High Power -72 dB @ Low Power Microphone Type Electret Microphone Impedance 2000 Ohms Frequency Stability +/-10 ppm FM Hum & Noise 50 dB

SKU	BLA-118130
Brand	Cobra Marine
