Product Overview
Blue Sea Systems

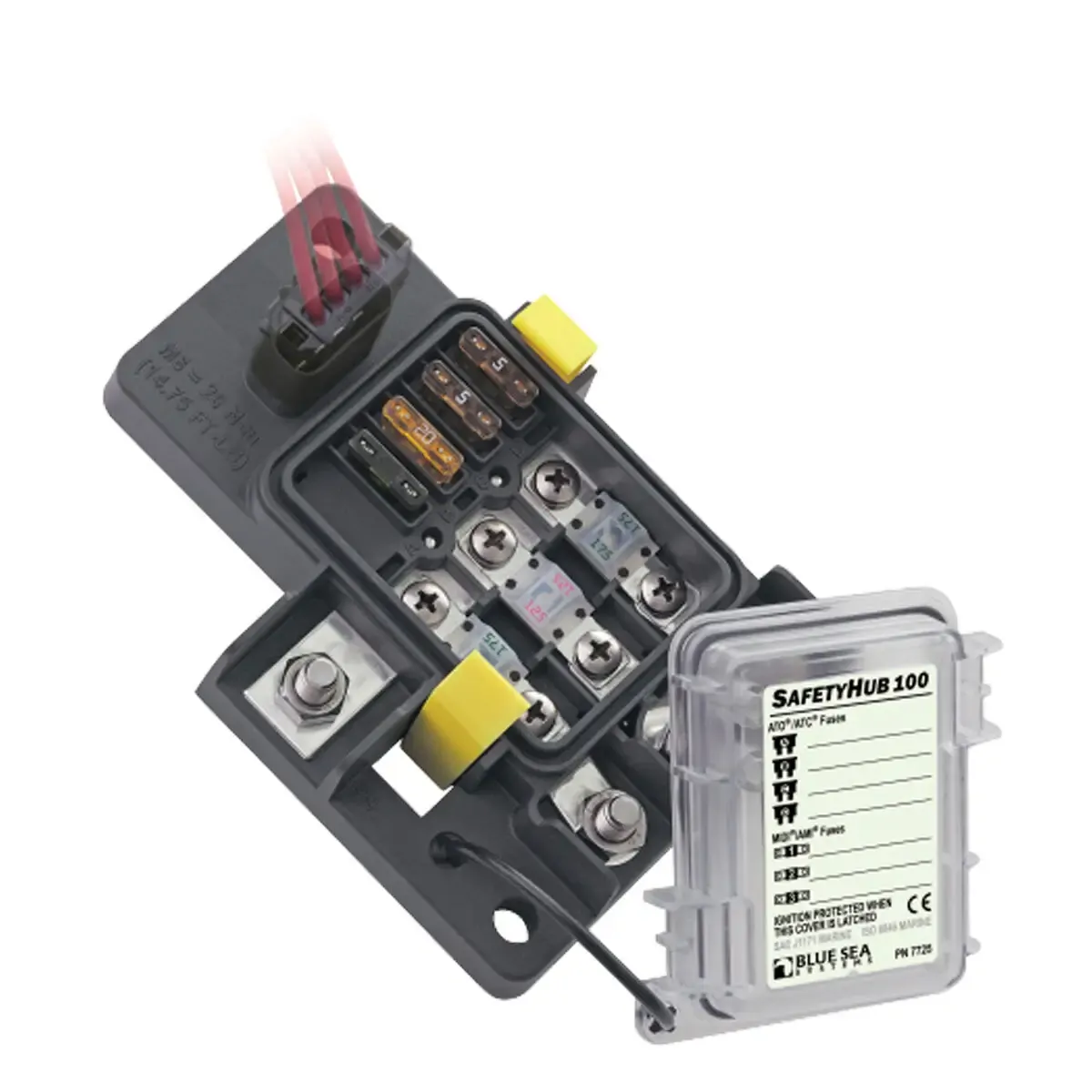

SafetyHub 100 Fuse Block
The SafetyHub 100 combines an ignition protected fuse block and integrated connecting plugs. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
- Accepts three AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
- Accepts four ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/ USCG insulation requirements
- Integrated connector plug eliminates loose wires and provides a secure, waterproof connection
- Fuses sold separately
BLA Code BS-7725
Amperage Max. Operating (combined) 280A
Voltage Nominal Operating 12V DC
Minimum Cable Size to Meet Ratings 4/0 AWG (120 mm²)
Recommended Ring Terminal M8 (5/16")
MIDI or AMI Fuse Block:
Amperage Max. Operating (per block) 240A
Amperage Max. Operating (per circuit) 170A
Fuse Amperages Available 30A-200A
Minimum Cable Size to Meet Ratings 2/0 AWG (70 mm²)
ATO or ATC Fuse Block:
Amperage Max. Operating (per block) 50A
Amperage Max. Operating (per circuit) 20A
Fuse Amperages Available 1A-20A
| SKU | BLA-BS-7725 |
| Brand | Blue Sea Systems |
