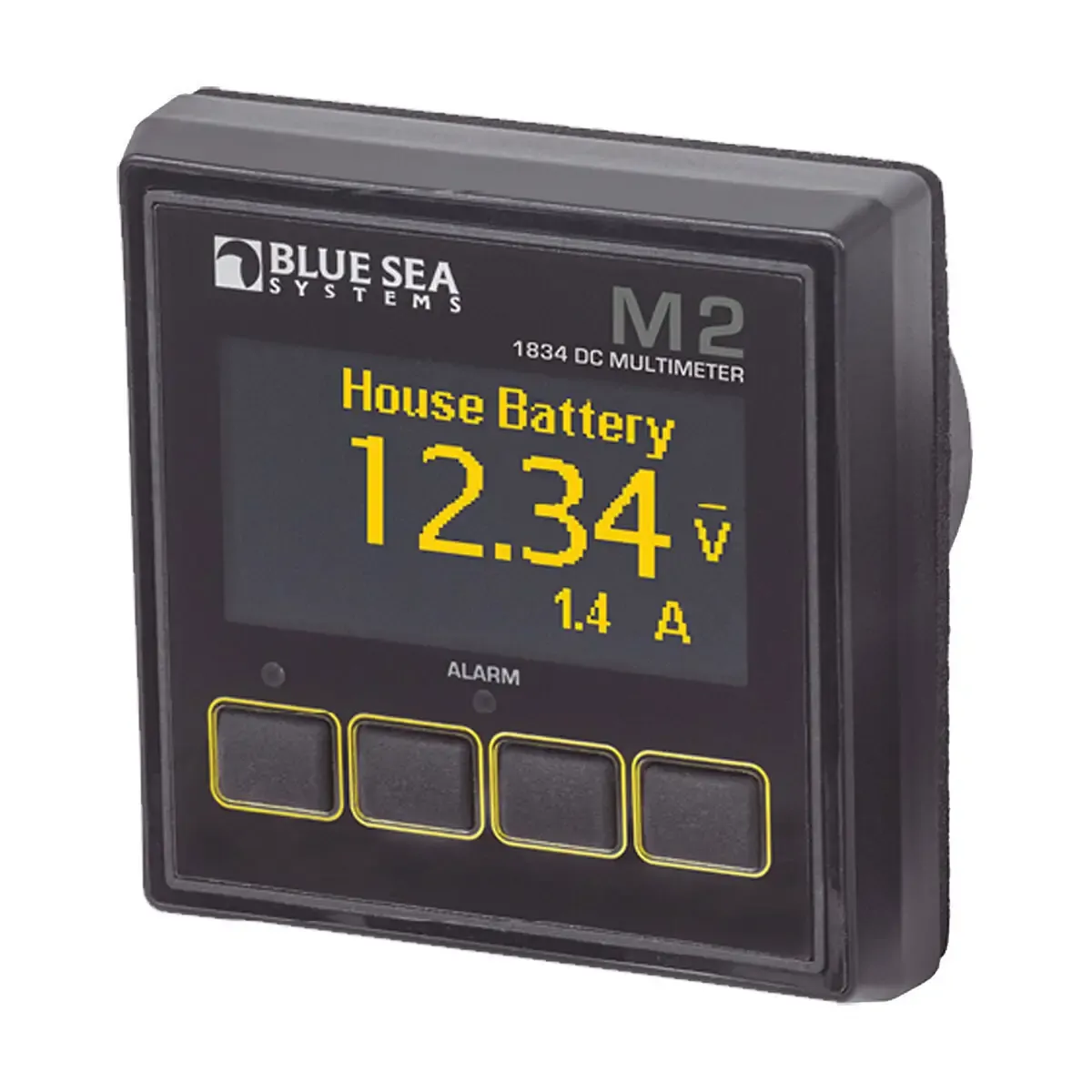

Blue Sea Systems M2 OLED Digital Meters The M2 organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and auto-dimming display. The M2 Monitor includes a MOSFET External Circuit Relay which can be used to control external circuits based on any value measured by the M2. Features: - Auto-Dimming LED Display, 55x28mm - 80dB alarm on all models - Isolated 500mA MOSFET relay - Includes external DC Shunt or AC current transformer when required - Mounts in 54mm hole - 82x82mm facia BLA Code BS-1830 BS-1832 BS-1833 BS-1834 Description SoC Monitor Ammeter Voltmeter Multimeter Monitors state-of-charge on Monitors current on Monitors the voltage Monitors the voltage Functions one battery bank and voltage two circuits on up to four battery of three battery banks on three battery banks banks and the current on one circuit Voltage: Voltages 12V, 24V, 48V Accuracy 1.0% - 1.0% 1.0% Operating 7V?70V DC - 7V?70V DC 7V?70V DC Resolution 0.01V DC - 0.01V DC 0.01V DC Current: Shunt 1 x PN 8255 (500A/50mV) 1 x PN 8255 (500A/50mV) - 1 x PN 8255 (500A/50mV) Accuracy 1.0% 1.0% - 1.0% Range ?500A to 500A ?500A to 500A - ?500A to 500A Resolution (100 to 150) 1A 1A - 1A Resolution (0.0 to 99.9) 0.1A 0.1A - 0.1A Power: Alarm/Relay Activation High and Low Voltage, High and Low Voltage, High and Low High Current, and Low High Current, and Low High and Low Voltage Voltage, High Current, Battery Battery and Low Battery

SKU	BLA-BS-1834
Brand	Blue Sea Systems
