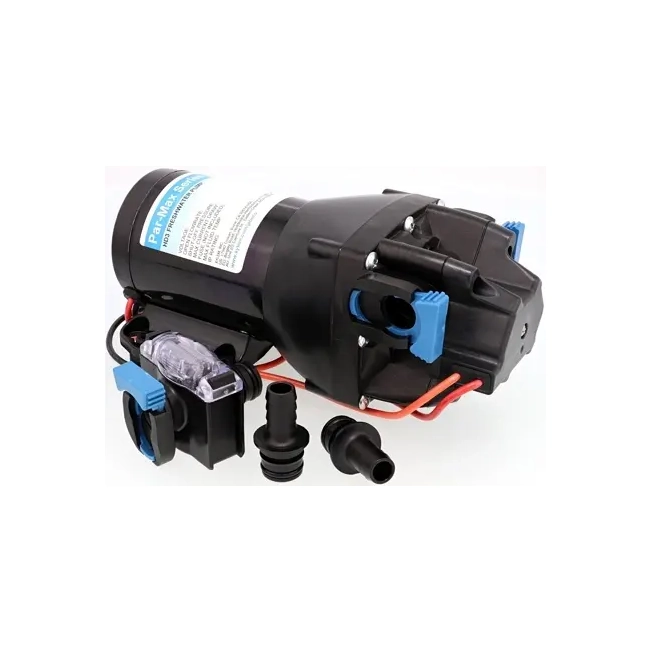

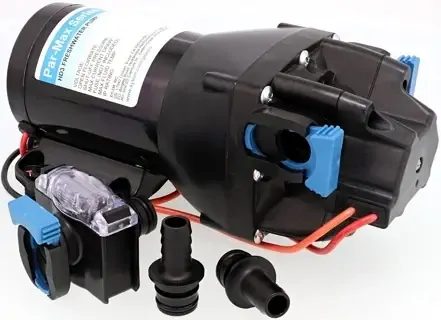

12 volt 60 PSI Par-Max 3.0 HD JABSCO Q301J-118S-3A


A Heavy Duty (HD) version of the above 3.0 GPM 11.3 LPM pressure pump.

This HD model has a 4 chamber quad design pumphead and off ers pressure up to 60PSI. HD models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance. The ideal robust heavy duty pump for providing freshwater automatically on pleasure craft up to approx the 9-10 metre range.Includes a 40 mesh plug-in inlet strainer in the box with the pump.

HD Quad 4 chamber automatic pressure pump gives fl ow up to 3 US Gallons per minute (11.3 litres per minute) and pressure up to 60 PSI. Serves up to 3 x 12mm outlets including galley, shower and additional faucet. The Par-Max 3.0 HD gives very smooth water fl ow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.

Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and quick connect plug-in hose ports included - 2 x 12mm barbed for hose. 12 volt only 60 PSI cut-out pressure.

• 11.3 litres per minute 60 PSI
• Quiet operation
• Can be run dry for extended periods
• Self primes to 2.4 Mtrs (8 ft)
• Built-in bypass lowers pulsation
• No need for an accumulator
