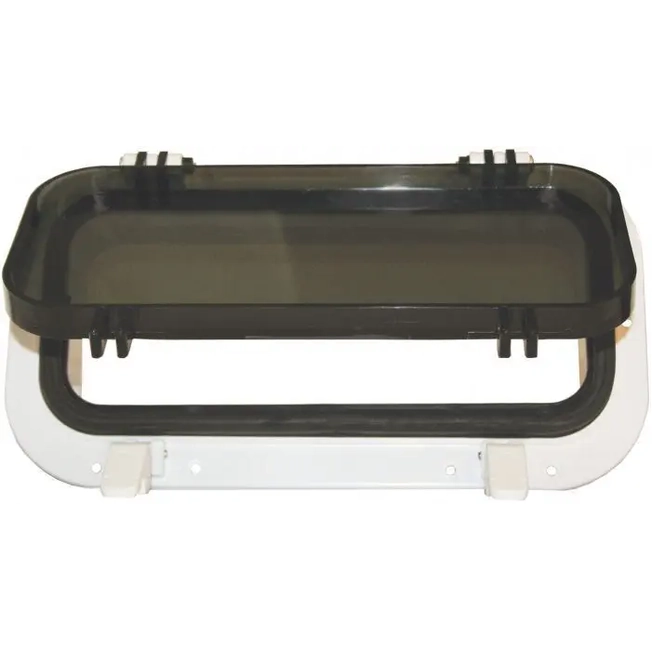

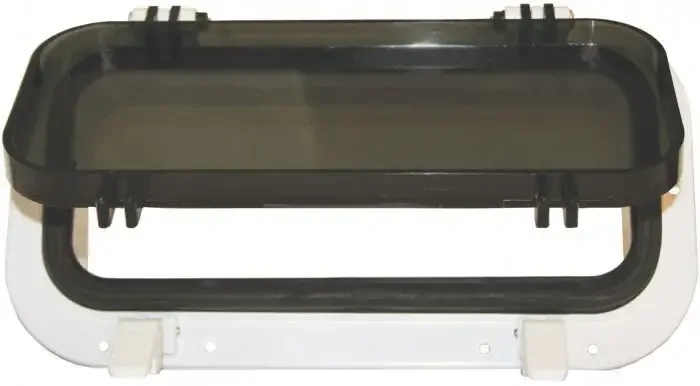

Port-Opening OA 314x140mm
Beckson "rain drain" opening ports are made in the U.S.A from the fi nest marine grade plastics available today. All metal parts are stainless steel. The lens is made from tough Lexan material.   Self draining style - with moulded drain on exterior housing. Smoked (tinted) lexan lense standard. Clear lense optional. Unique, simple cam lock opening and closing mechanism Exterior is made of white UV resistant marine grade plastic Rim sits tightly against the gasket for a waterproof seal Unique hinge allows the window to hold open at any angle All metal parts are made of stainless steel Supplied complete with gasket, insect screen and trim ring All ports have a 50mm (2") spigot which suits a maximum hull thickness of 45mm (1 3/4"). Can be cut down to size. SKU Size Name Cut-out Size Overall Size RWB2760 3 x 10 89 x 264mm 140 x 314mm RWB2762 4 x 10 89 x 264mm 172 x 324mm RWB2764 5 x 12 140 x 318mm 197 x 372mm RWB2766 4 x 14 114 x 365mm 172 x 425mm RWB2767 7 x 14 190 x 365mm 248 x 425mm   Spare Parts For Beckson Ports PORT CODE SIZE OVERALL CODE CLEAR LENS CODE TINTED LENS CODE GASKET SEAL CODE FLY SCREEN  RWB2760  140 x 314 SP361C  SP361S  SP365  SP363 RWB2762  172 x 324  SP240C SP240S  SP243  SP246 RWB2764  197 x 372   SP241C  SP241S  SP244  SP247 RWB2766  172 x 425  SP242C  SP242S  SP245  SP248 RWB2767  248 x 425  SP362C  SP362S  SP366  SP364
