Product Overview

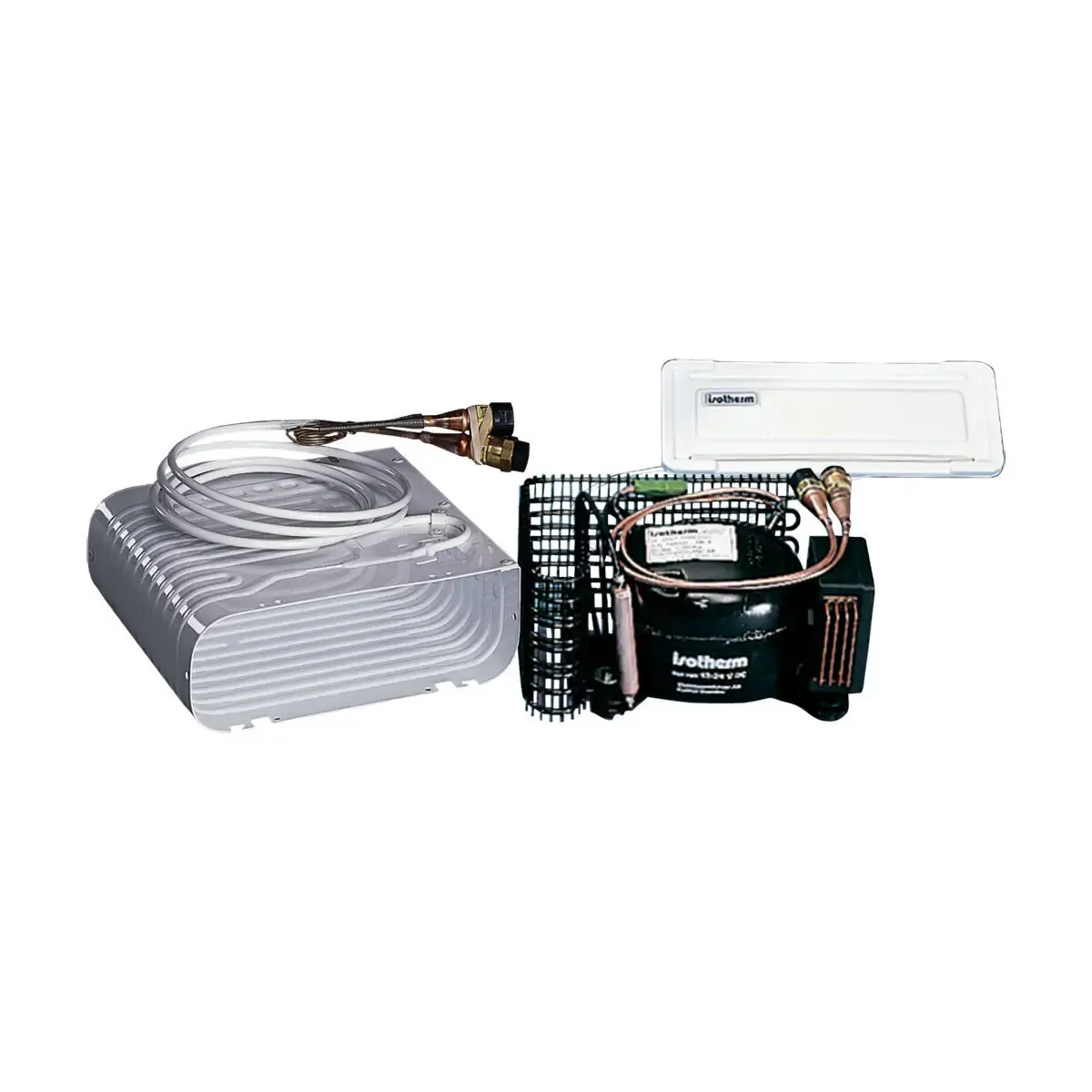

12-24 volt fan cooled refrigeration units suitable for mounting in new or existing ice boxes. The fan cooled compressor can be mounted up to two metres away from the evaporator box or plate. Box type ‘O’ evaporators provide an internal freezer compartment as well as cooling the entire refrigeration compartment. Units are supplied pre-gassed with re-openable quick-fit connectors for ease of installation. A choice of ‘O’, ‘L’ and flat evaporators are available. Flat evaporators can be carefully formed to suit box size. Low voltage cut off and radio interference suppression are fitted as standard. Temperature is adjusted by a rotary thermostat incorporating an on/off switch. Connection of the evaporator plate to the compressor requires only a 30mm hole to be drilled in the ice box compartment wall. Utilises R134A ozone friendly refrigeration gas.

CODE VOLUME* FRIDGE/FREEZER L EVAPORATOR TYPE COMPRESSOR TYPE AV. POWER** CONSUMPTION A/HR@12V MAX. POWER CONSUMPTION AMPS@12V COMPRESSOR DIMENSIONS H X W X L MM EVAPORATOR DIMENSIONS H X W X L MM WEIGHT KG
381502 125/40 'O' BD35F 0.6 2.5 155 x 160 x 270 95 x 240 x 210 9
381504 150/50 'O' BD35F 0.7 3.5 155 x 160 x 270 100 x 320 x 230 9
381506 200/65 'O' BD50F 0.9 3.5 155 x 160 x 315 140 x 380 x 270 9
381507 125/40 'L' BD35F 0.7 3.5 155 x 160 x 270 210 x 170 x 400 9
381508 60/20 Flat BD35F 0.6 2.5 155 x 160 x 270 130 x 350 9
381510 170/55 Flat BD50F 0.9 4.5 155 x 160 x 315 210 x 815 11
381512 200/65 Flat BD50F 1 6 155 x 160 x 315 190 x 1200 12
381514 260/85 Flat BD50F 1.1 6 155 x 160 x 315 270 x 1000 12
381516 400/140 Flat BD50F 1.2 6 155 x 160 x 315 300 x 1370 12



Accessories
381524 Quick release mount bracket
381650 Optional fridge/freezer twin thermostat
381590 Large ‘O’ evaporator door
381648 Optional freezer thermostat

* Freezer volume is calculated at approximately one third of the refrigerator volume capability. Freezer thermostat required if used as freezer.
** Indicates average power consumption at +6°C in refrigeration space using a typical cooler box with standard insulation at an ambient temperature of +22°C.

SKU BLA-381506
Brand Isotherm
