Product Overview
| Part No. | 40235 |
| Length | 235mm |

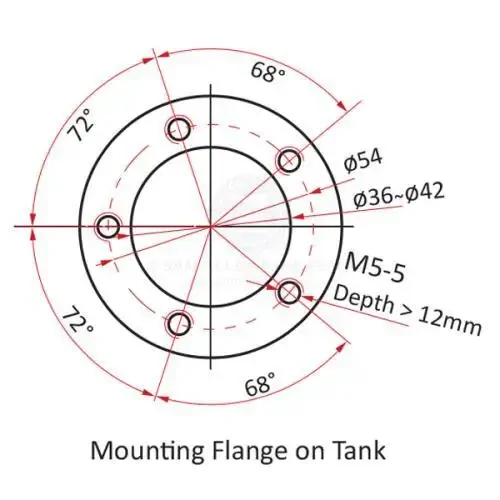

| Mount Style | 5 Hole |
| Mount Flange | Dia. 69mm |
| OHMS | 240-33 |

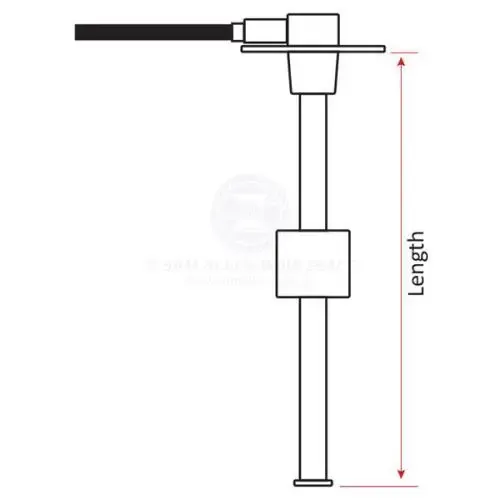

| Note | • Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration. • Output signal: 240~33 OHMS. • 316G stainless steel main body. • SAE Standard: 5 mounting holes. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • Protection Rating: IP67. • 2mm thick FPM gasket. • 250mm tinned wire with PVC cover. • Stainless steel mounting screws included. • 33mm float diameter. Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. |
| SKU | SAW-40235 |
| Brand | KUS |
Ratings & Reviews
Be The First To Review This Product!
Help other Marine Depot users shop smarter by writing reviews for products you have purchased.

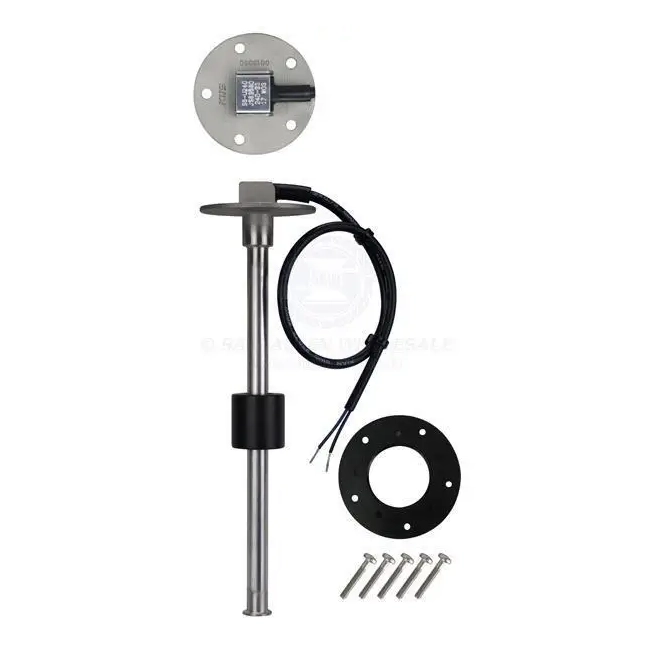

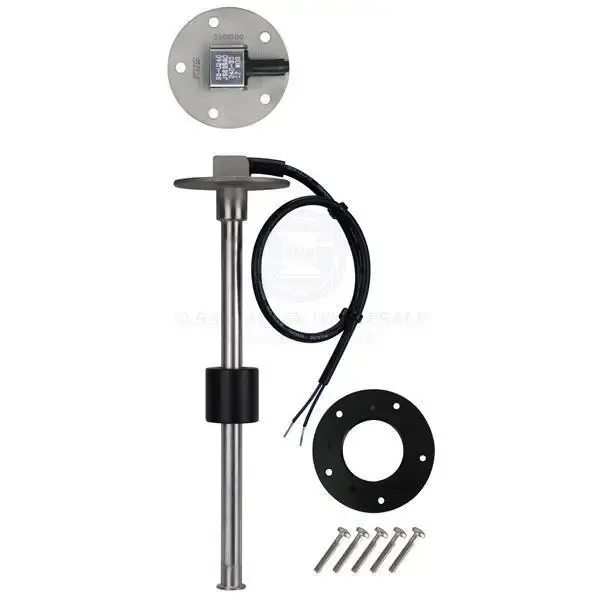

KUS 235mm Fuel Gauge Sender 316G Steel Water Tank Boat Marine Caravan 240-33 OHMS
