Product Overview

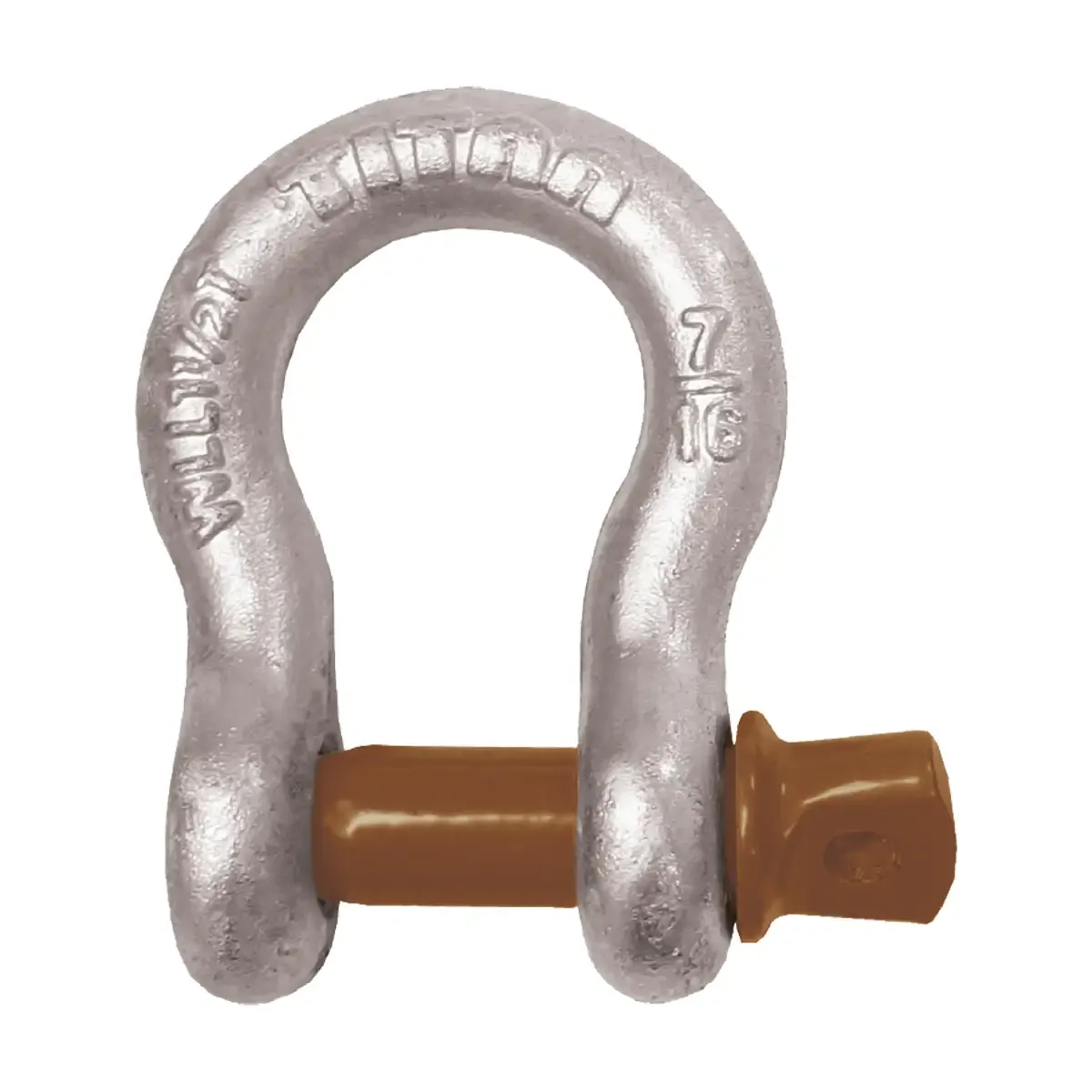

TitanTM Tested Bow Shackle - Galvanised
Quality heavy duty tested bow shackle. Suitable for a wide range of applications.
Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
BLA Code Bail Size mm Pin Dia. mm Working Load kg Breaking Load kg D1 mm E Thread mm W mm B mm L mm
143072 6 8 500 3000 4.8 5/16" -18UNC 11.9 19.8 28.7
143074 8 10 750 4500 5.6 3/8" -16UNC 13.5 21.3 31
143076 10 11 1000 6000 6.4 7/16" -14UNC 16.8 26.2 36.3
143078 13 16 2000 12000 9.7 5/8" -11UNC 20.6 33.3 47.8
143080 16 19 3250 19500 11.2 3/4" -10UNC 26.9 42.9 60.5
143082 19 22 4750 28500 12.7 7/8" - 9UNC 31.8 50.8 71.4
143084 22 25 6500 39000 12.7 1" - 8UNC 36.6 57.9 84.1
143086 25 29 8500 51000 14.2 1 1/8" - 7UNC 42.9 68.3 95.3
| SKU | BLA-143084 |
| Brand | Titan |
Ratings & Reviews
Be The First To Review This Product!
Help other Marine Depot users shop smarter by writing reviews for products you have purchased.
Titan Shackle Bow Galv Rated 22Mm
Shop all Titan
Part No: BLA-143084
