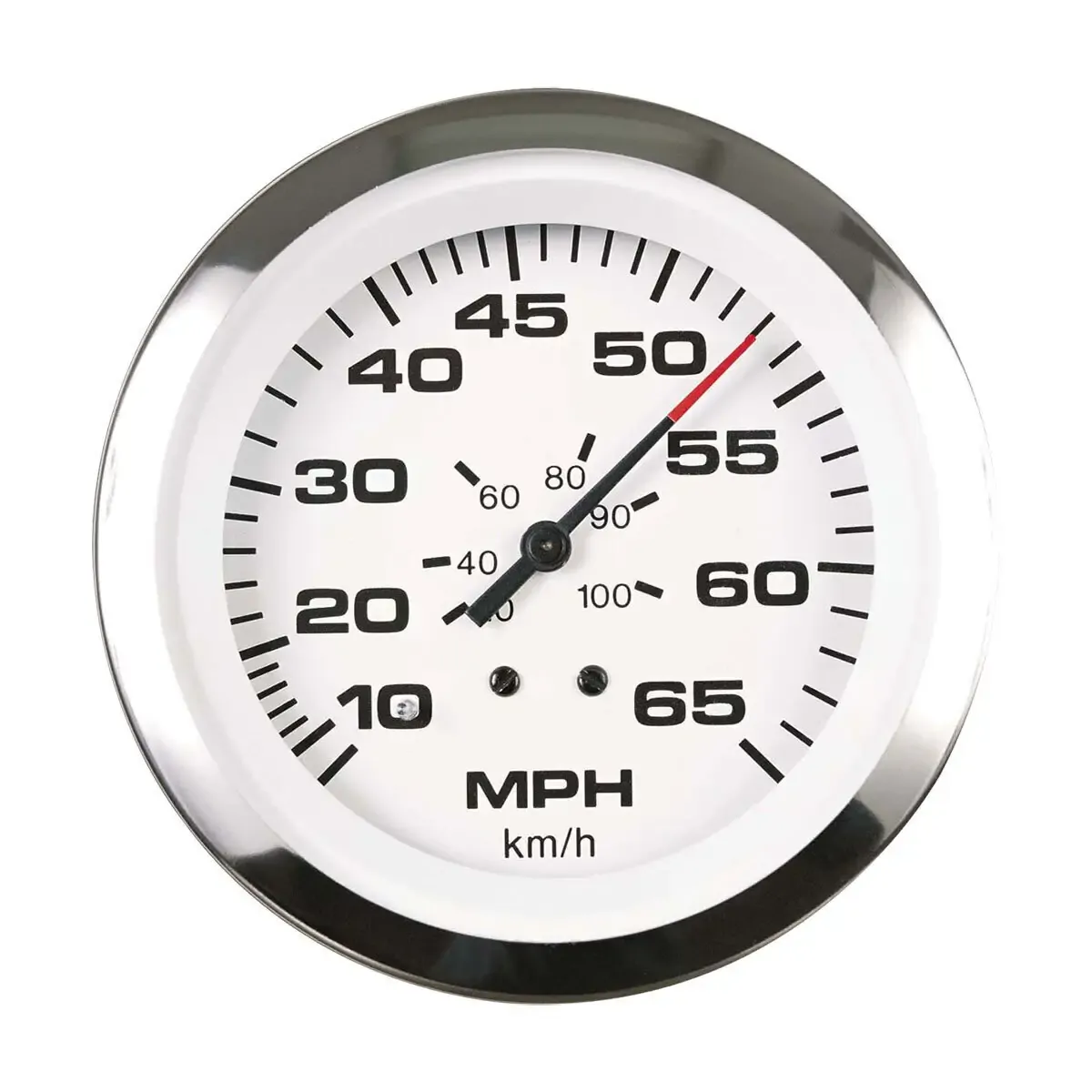

Veethree Instruments Lido Pro Domed Gauges Features: - Highly polished, curved stainless steel bezel that eliminates water trapping - Black graphics on a white dial background - Pointers are black with a fire orange tip - White perimeter and red through dial lighting - Fog free, scratch resistant curved glass lenses - Shielded to prevent magnetic interference - Silicon dampening to eliminate pointer bounce - Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390 - Kits include 20' of pitot hose Dimensions: A mm B mm C mm D mm 75mm Tacho 96 86 70 13 75mm Speedometer 96 86 82 13 50mm Electrical 61 53 63 11 BLA Code Description Face Dia. mm *Sender Style Tachometers: 112332 Tacho 7000 RPM inboard & outboard 75 Coil and O/board alt 112334 Tacho 7000 RPM c/w hourmeter 75 Motor Alternator N.B. Refer to page 230 for tachometer application guide Speedometer: 112338 Speedo kit 35 MPH 75 G included 112340 Speedo kit 50 MPH 75 G included 112342 Speedo kit 65 MPH 75 G included Water temperature gauge: 112352 Water temperature 120ºF - 240ºF 50 D Oil pressure: 112356 Oil pressure 0 - 80 PSI 50 C 112358 Oil pressure 0 - 100 PSI 50 C Hourmeter: 112360 Hourmeter, 10,000 Hrs, 10 - 32 volt 50 Not required Ammeter: 112365 Ammeter 60 - 0 - 60 50 Not required Voltmeter: 112364 Voltmeter, 8 - 18 volt 50 Not required Fuel: 112368 Fuel 50 F Water Tank: Refer page 238 112376 Water 50 10-180Ohm Trim: 112370 Evinrude®/Johnson® outboards 50 Engine manufacturer 112372 Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on 50 Engine manufacturer Accessories: 112394 Drop resistor suit 75mm gauge 112396 Drop resistor suit 50mm gauge 112390 24 volt bulb * For Sender style refer page 237-238

SKU	BLA-112342
Brand	VeeThree Instruments
