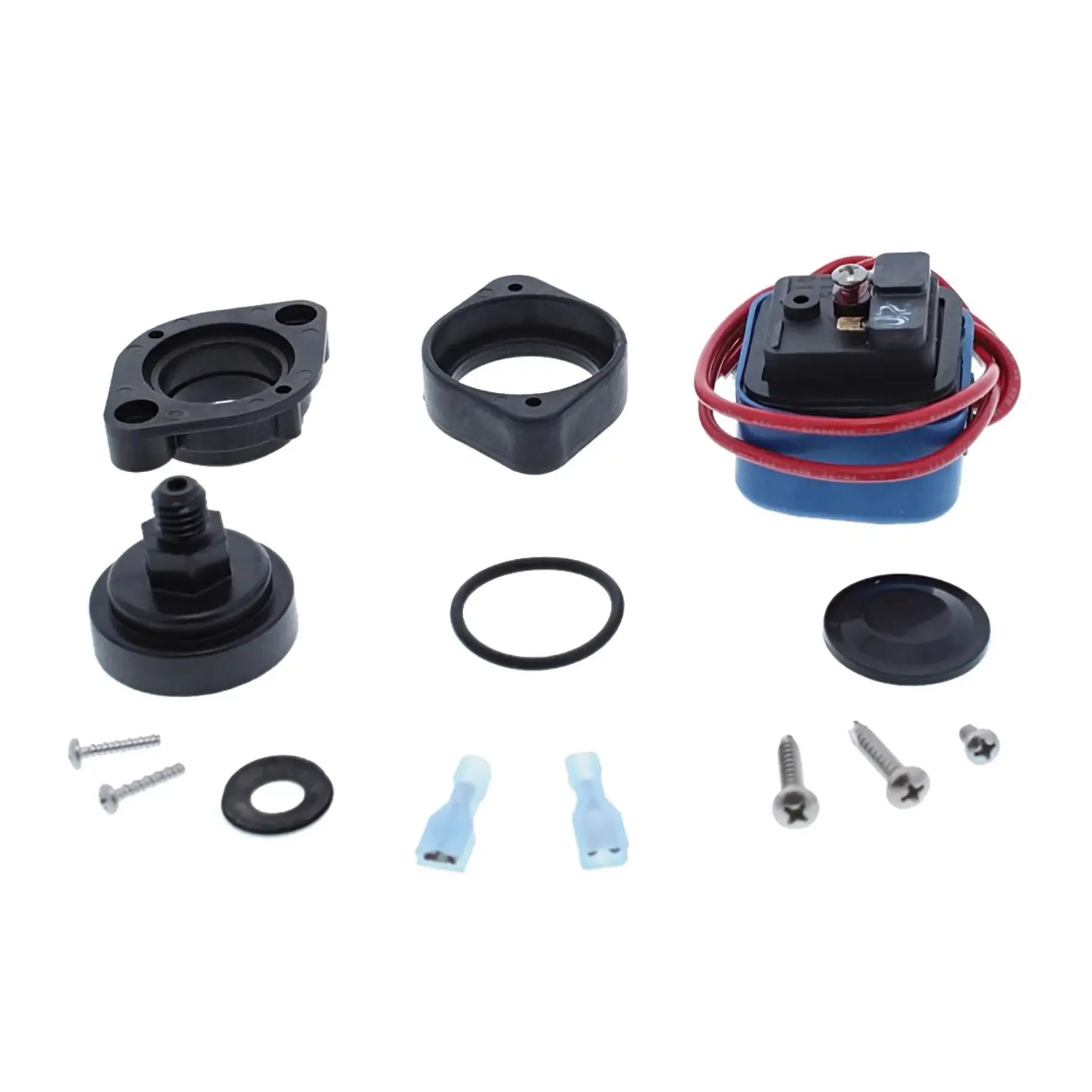

Switch Kit Par Pump 40PSI
High capacity integrated 2 stage dual pump system for larger vessels where water demand may be high at multiple outlets. It combines 2 x Par-Max 4 quad diaphragm automatic pressure pumps complete with moulded base, integrated accumulator tank, ? lters, hoses and all plumbing connections fully ? tted ready to go in 1 complete unit. The 2 stage pump system operates automatically via a pressure switch when a faucet is opened or closed. Under low demand conditions only the primary pump operates delivering up to 14.3 litres per minute with low amp draw. Under high demand the secondary pump is activated and the ? ow will increase up to 28.4 litres per minute (7.5 GPM). Under maximum demand the total current draw is only 15 amps at 12v or 7.5 amps at 24v. The accumulator tank with bladder smooths out the water ? ow and reduces on/off cycling of the pump by lessening the pressure variation. It also gives better control of hot water temperature for showers. Up to 28 litres per minute ?ow - serves up to 6 outlets Cut-in Pressure 20 PSI : Cut-out 40 PSI Versatile 2 stage dual pump system lowers amp draw Ignition protected and thermal overload protection Heavy duty moulded plastic base housing Incorporates accumulator tank to reduce pump cycling Includes ?lters, hoses and 20mm (3/4”) connections Fully electrically wired including waterproof fuse holders Self primes to 1.5 metres (5 feet)

SKU	RWB-J25-117
Brand	RWB
