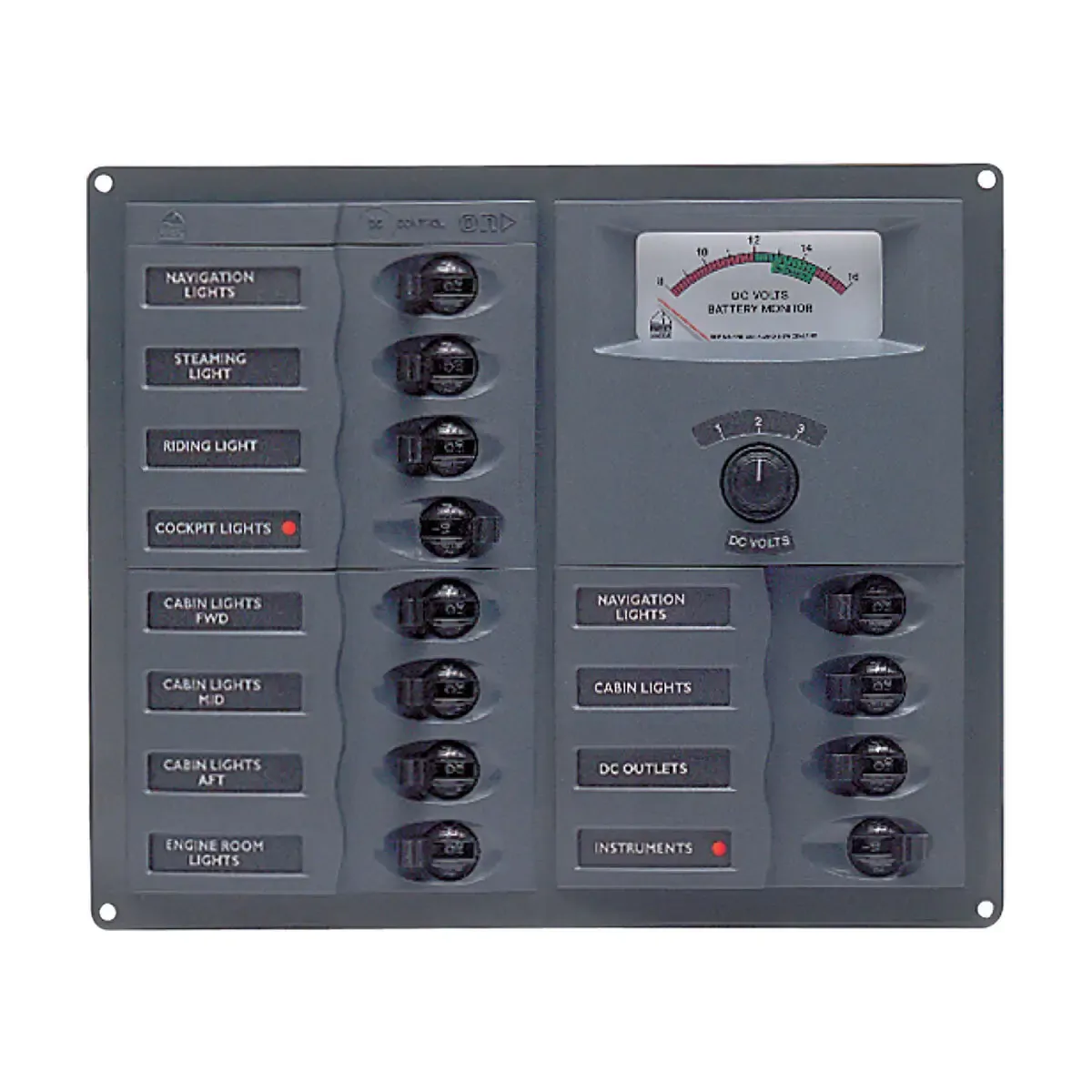

BEP 'Contour' Circuit Breaker Panels - with Analogue Meters Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally. Available with 12 volt (AV12) or 24 volt (AV24) analogue expanded scale meter with three way selector switch to monitor multiple battery banks. Larger panels include both voltmeter and ammeter. Analogue ammeters are supplied standard in 0-50 amp scale (AA50) and include a 50 amp shunt. An alternative 100 amp meter can be substituted with a corresponding 100 amp shunt. For secondary shunts refer page 211. For other label options refer pages 156 and 157. For replacement circuit breakers refer page 190. Features: - Analogue meters - 2.5% of full scale accuracy - 1x shunt supplied - Durable grey powder coated marine grade aluminium base panel - Marine quality, magnetic, hydraulic, UL listed, trip free breakers - Green LED back lighting for meters and labels - Backlit labels supplied, refer page 156 - Suitable size negative busbar supplied, refer page 183 - Red LED indication for circuits 'on' - Double pole configurations available for survey or additional safety With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested. BLA Code 113146 Circuits 12 Overall Size W x H mm 239x200 Cut Out Size W x H mm 219x180 Intrusion mm 65 Mount Screws Gauge 6 r/h Power Volt 12 Meter AV12 Label Sheet 1 Circuit Breakers: 5 amp 3 10 amp 4 15 amp 4 20 amp 1 25 amp - 30 amp -

SKU	BLA-113146
Brand	BEP
