BEP Splash Proof Switch Fuse Panels
- With Power Socket
Injection moulded plastic panel with high quality two position switches rated to 20 amp, covered by rubber boots and a cigarette lighter type power socket rated to 16 amp.
Panel is splash proof to IP56 standard from the front face.
Each pair of toggle switch/power socket is connected to a behind panel mounted AF type blade fuse holder (115714).
Available in 3 or 5 gang versions with a choice of grey or white facia. Supplied complete with 113714 28 piece label set (refer page 218).
Power plug is not included with the panel and is available as a separate part. Now supplied with Marinco power socket.
BLA Code Facia Colour Gang Overall Size mm Cut Out Size mm Intrusion mm Power Volt Mount Screws mm
113243 Grey 3 107 x 95 87 x 45 75 12-24 3 c/s

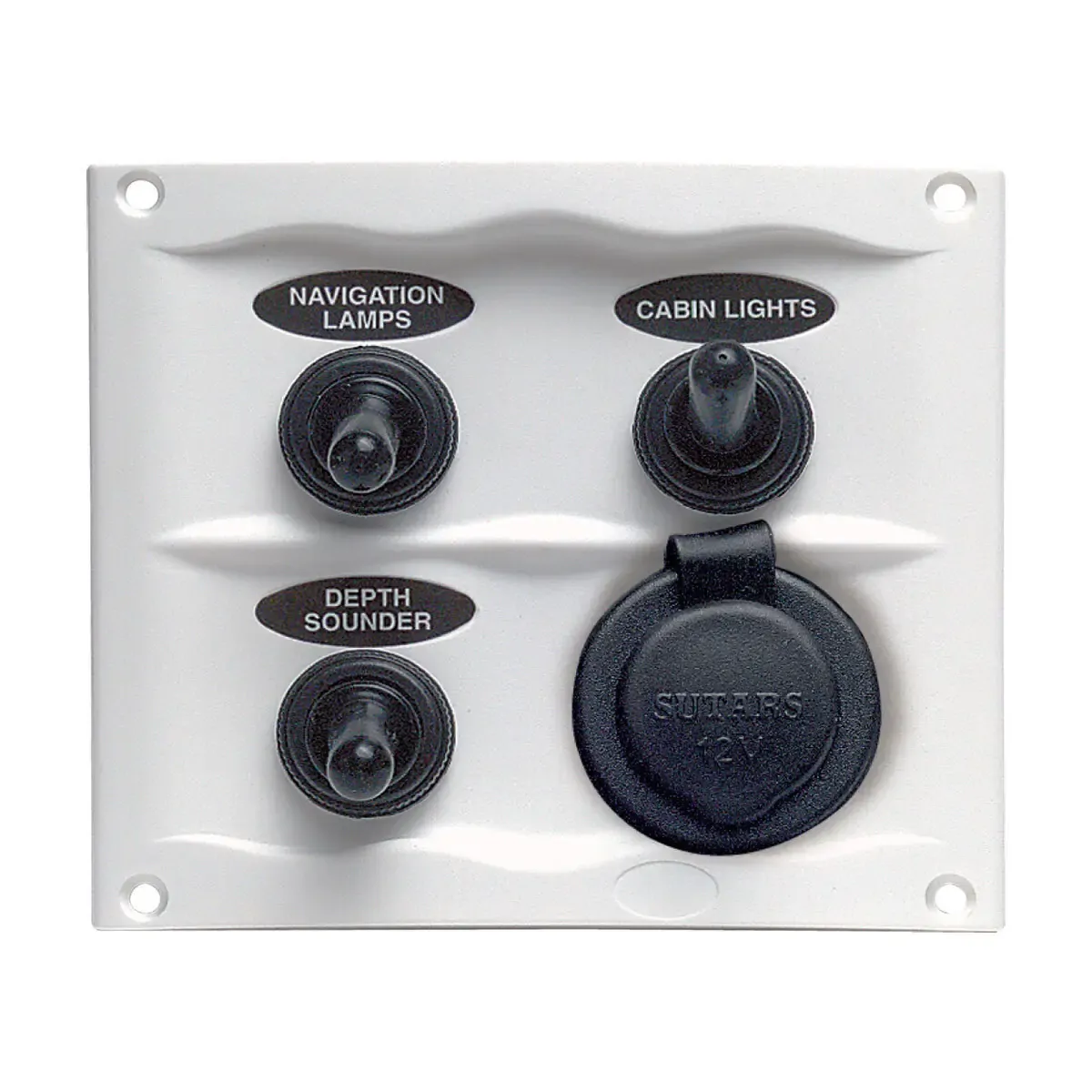

113244 White 3 107 x 95 87 x 45 75 12-24 3 c/s
113253 Grey 5 107 x 95 87 x 45 75 12-24 3 c/s
113254 White 5 107 x 95 87 x 45 75 12-24 3 c/s
Accessories
113256 Marinco power plug 113473 (on)/off toggle switch
113471 On/off/on switch 115714 Fuse holder
113472 On/off switch 113520 Dual 6mm insulated stud
113491 Rubber boot
