BEP Splash Proof Switch Fuse Panels
Injection moulded plastic panel with high quality two position toggle switches covered by neoprene rubber boots to provide splash proof (IP56) protection from the
front face. Each pair of toggle switches is connected to a behind panel mounted AF type blade fuse (115714).
Available in 4 or 6 gang versions with a choice of grey or white facia. Supplied complete with 113714 28 piece label
set (refer page 218). Switches are rated to 20 amp.
BLA Code Facia Colour Gang Overall Size mm Cut Out Size mm Intrusionmm Power Volt Mount Screws mm
113240 Grey 4 107 x 95 87 x 45 75 12-24 3 c/s
113241 White 4 107 x 95 87 x 45 75 12-24 3 c/s
113250 Grey 6 107 x 95 87 x 45 75 12-24 3 c/s

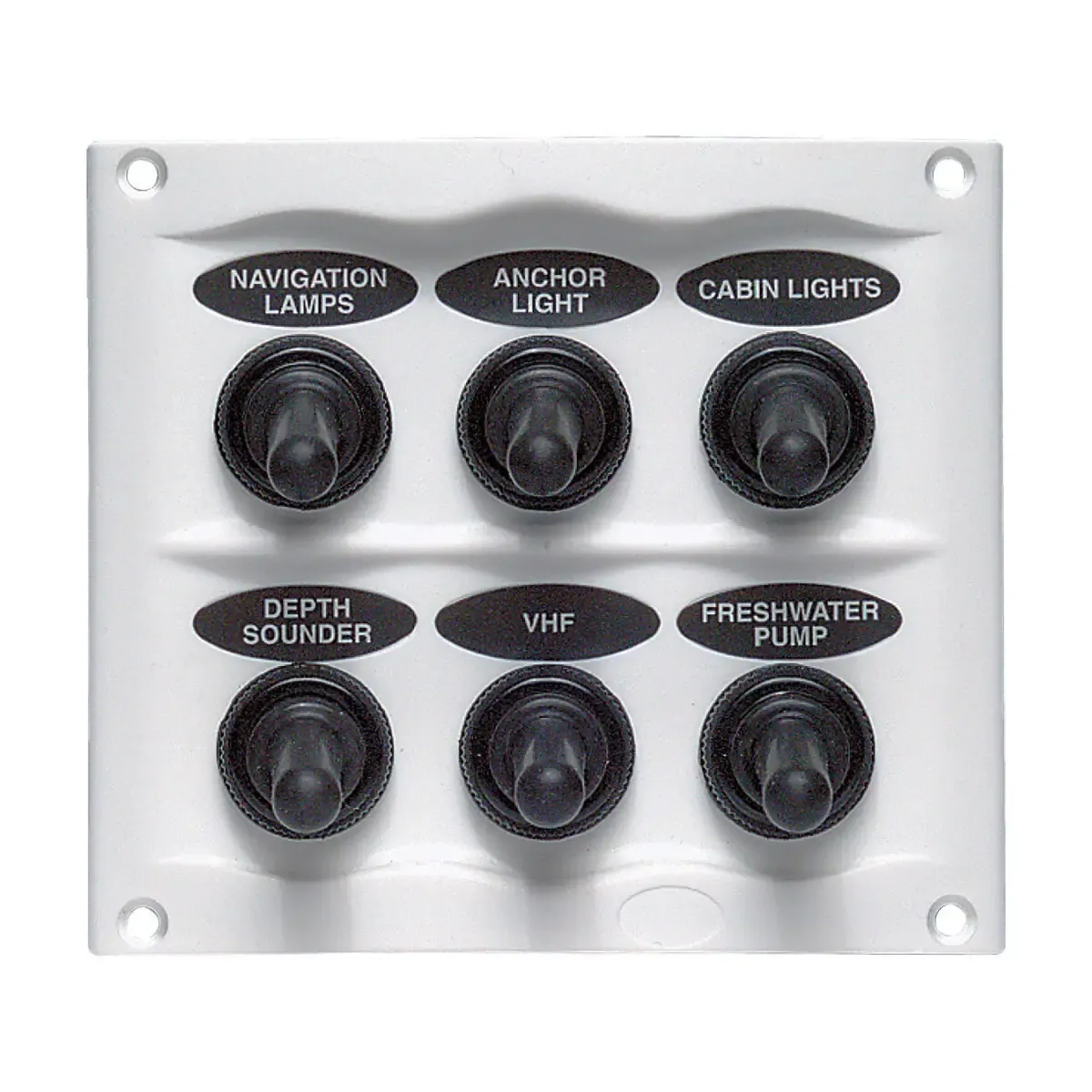

113251 White 6 107 x 95 87 x 45 75 12-24 3 c/s
Accessories
113471 On/off/on switch 113473 (on)/off toggle switch
113472 On/off switch 115714 Fuse holder
113491 Rubber boot 113520 Dual 6mm insulated stud
