Product Overview

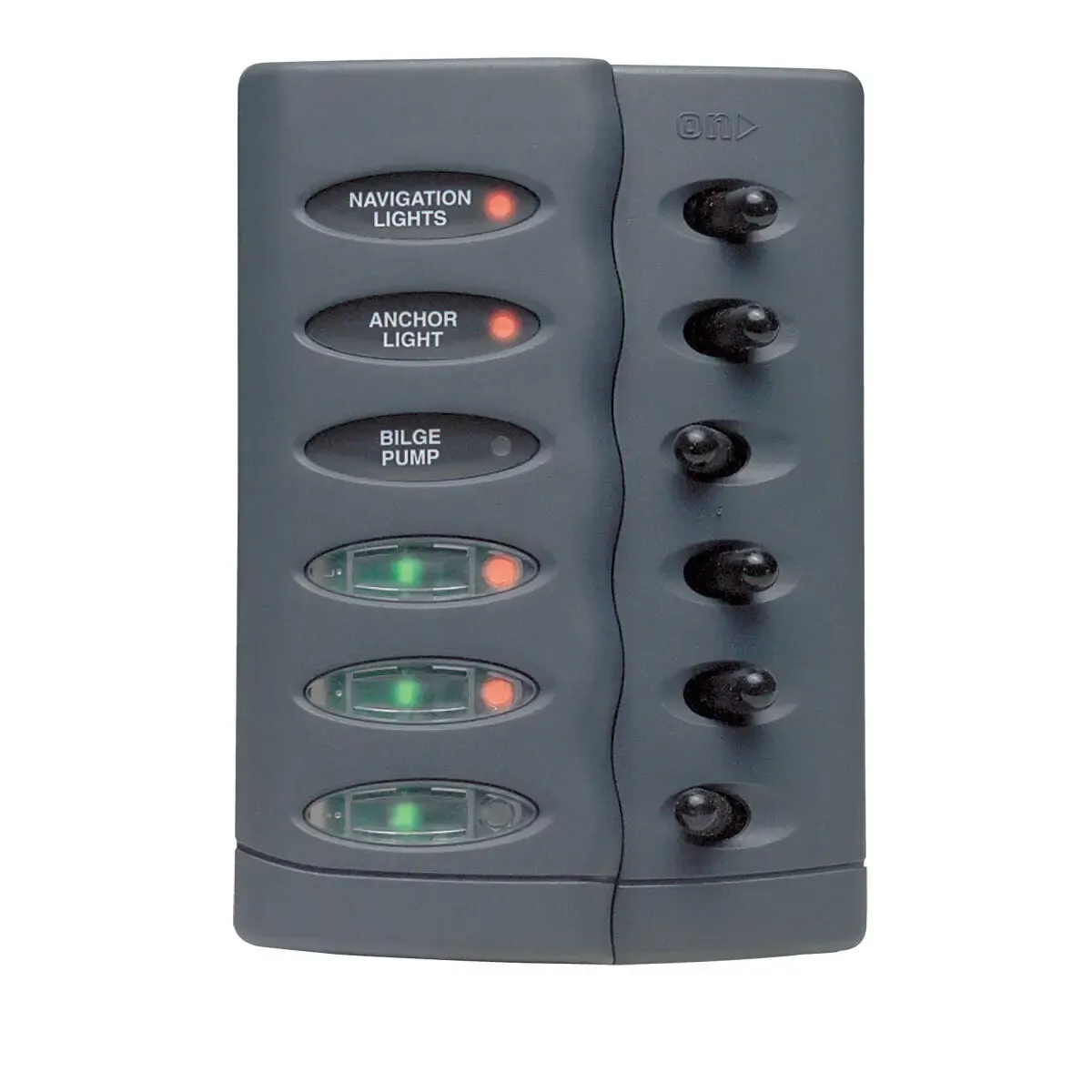

BEP Splash Proof Switch Panels
Stylish contoured, moulded plastic panel with removable cover plate over the switches to conceal screws and water drain. Six gang switched circuits with high quality, two position toggle switches covered by neoprene rubber boots providing splash proof protection from the front face to IP56 standard.
Features red LEDs for systems on and green LED back-lit labels.
Choice of three models - Unfused for installation with separate fuses, fused with each pair of toggle switches connected to a behind panel mounted AF type blade fuse or PTC fused.
Positive Temperature Coefficient (PTC) fuses are solid state 9 amp resettable fuses (turn switch off for 10 secs to reset). Supplied complete with 113702, 29 piece label set below.
Additional label set 113703 is also available, below. Switches are rated to 20 amp.
BLA Code Facia Colour Fuses Overall Size mm Cut Out Size mm Intrusion mm Power Volt Mount Screws mm
113260 Grey No 110 x 158 92 x 130 65 12 4 c/s
113262 Grey Blade 110 x 158 92 x 130 75 12 4 c/s
113263 White Blade 110 x 158 92 x 130 75 12 4 c/s
113264 Grey PTC 110 x 158 92 x 130 75 12 4 c/s
Accessories
113471 On/off/on switch
113472 On/off switch
113491 Rubber boot
113473 (On)/off switch
115714 Fuse holder
113520 Dual 6mm insulated stud
| SKU | BLA-113264 |
| Brand | BEP |
