Veethree Instruments Premier Pro Domed Gauges - Stainless Steel
Features:
- Highly polished, curved stainless steel bezel that eliminates water trapping
- White graphics and pointer on a black dial background
- Where applicable, metric information is shown in blue
- Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision
- Fog free domed glass lens is scratch resistant
- Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
- Shielded to prevent magnetic interference
- Silicone dampened
- Hourmeter 10-32 volt
Dimensions:
A mm B mm C mm D mm

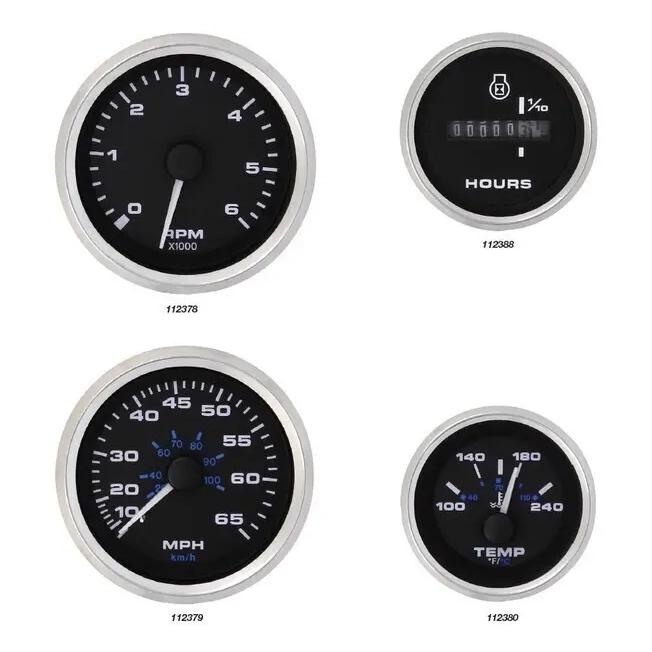

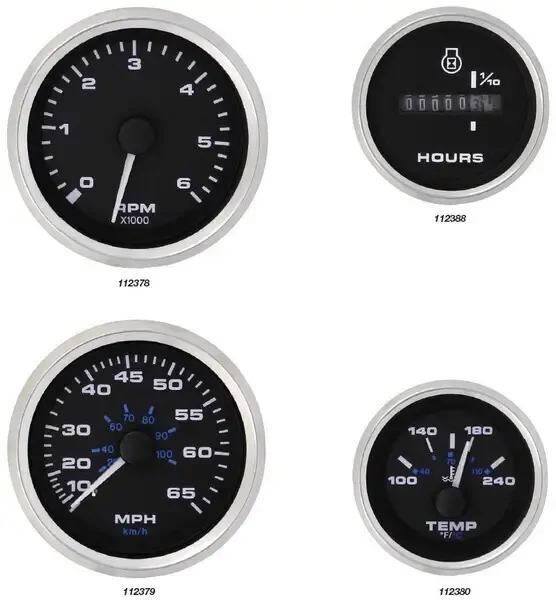

75mm Tacho 96 86 70 13
75mm Speedometer 96 86 82 13
50mm Electrical 61 53 63 11
BLA Code Description Face Dia. mm *Sender Style
Tachometer:
112378 Tacho 6000 RPM inboard & outboard 75 Coil and O/board alt
N.B. Refer to page 230 for tachometer application guide
Speedometer:
112379 Speedo kit 65 MPH 75 G included
Water temperature gauge:
112380 Water temperature 120ºF - 240ºF 50 D
Oil pressure:
112382 Oil pressure 0 - 80 PSI 50 C
Hourmeter:
112388 Hourmeter, 10,000 Hrs, 10-32 volt 50 Not required
Voltmeter:
112384 Voltmeter, 10 - 16 volt 50 Not required
Fuel:
112386 Fuel 50 F
Accessories:
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb
* For Sender style refer page 237
