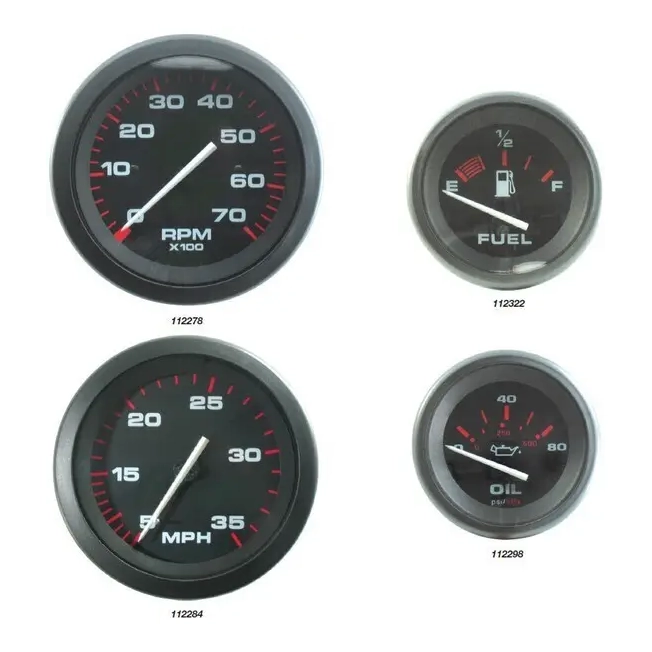

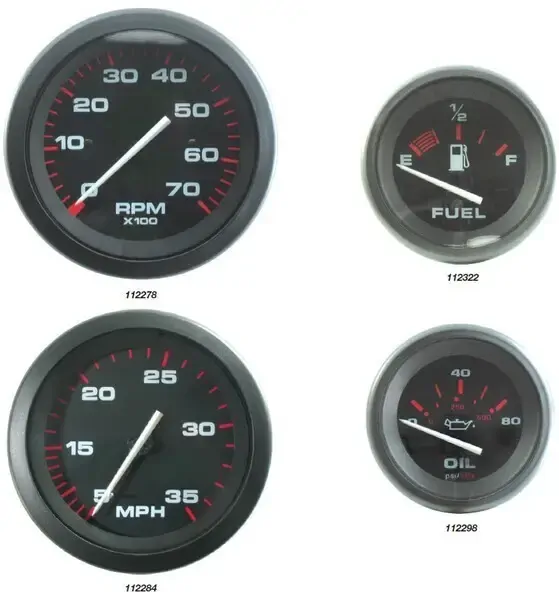

Veethree Instruments Black Amega Domed Gauges Features: - Very low profile black bezel follows the curve of the lens to eliminate any water 'trapping' - Red and white graphics on a black dial background - Through dial and perimeter lighting is provided for night visibility - Domed convex glass is scratch resistant - Pointers are white with a black hub - Shielded to prevent magnetic interference - Silicone dampened - Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390. - Hourmeter 10 - 32 volt Dimensions: A mm B mm C mm D mm 75mm Tacho 96 86 70 13 75mm Speedometer 96 86 82 13 50mm Electrical 61 53 63 11 BLA Code Description Face Dia. mm *Sender Style Tachometers: 112278 Tacho 7000 RPM inboard & outboard 75 Coil & O/B alt 112282 Tacho 4000 RPM diesel alternator 75 Motor alternator N.B. Refer to page 230 for tachometer application guide Speedometer: 112284 Speedo kit 35 MPH 75 G included 112286 Speedo kit 50 MPH 75 G included 112288 Speedo kit 65 MPH 75 G included Kits include 20' of pitot hose Water: 112294 Water temperature 120ºF - 240ºF 50 D 112296 Water Pressure Kit 0 - 40 psi 50 Oil pressure: 112298 Oil pressure 0 - 80 PSI 50 C 112300 Oil pressure 0 - 100 PSI 50 C Hourmeter: 112306 Hourmeter, 10,000 Hrs 10-32 volt 50 Not required Voltmeter: 112314 Voltmeter, 8 - 18 volt 50 Not required Ammeter: 112318 Ammeter 60 - 0 - 60 50 Not required Fuel: 112322 Fuel 50 F Trim: 112326 Evinrude®/Johnson® outboards 50 Engine manufacturer 112328 Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on 50 Engine manufacturer Accessories: 112394 Drop resistor suit 75mm gauge 112396 Drop resistor suit 50mm gauge 112390 24 volt bulb * For Sender style refer page 237-238

SKU	BLA-112278
Brand	VeeThree Instruments
