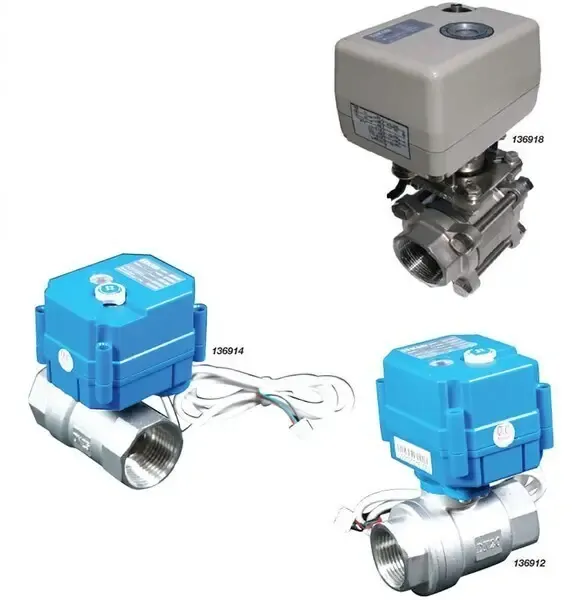

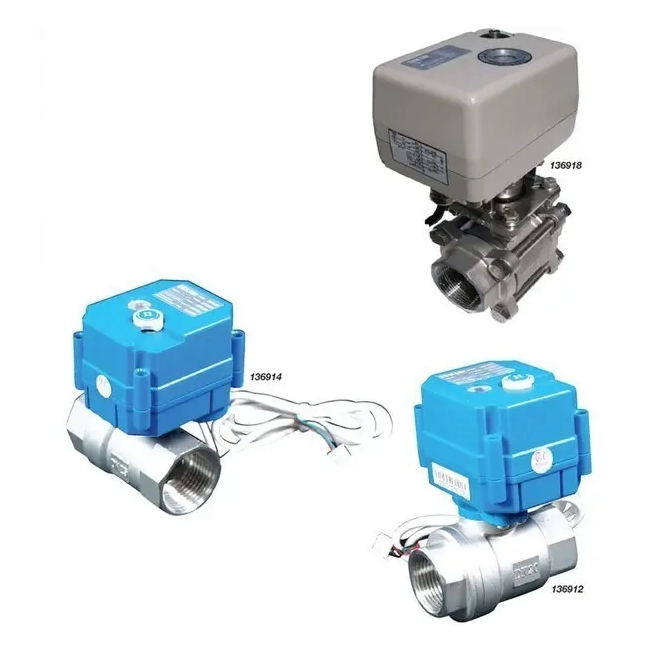

Electrical Actuated Ball Valves A range of convenient electric actuators combined with 304 grade stainless steel two way ball valves to provide remote operation allowing the ball valve to be opened or closed electronically from a single position. The electric actuators are operated via a standard three position electrical switch (not supplied). For added safety a simple yet efficient built in manual override function is standard for use in the event of a power failure (valve accessibility required). An easy to view ball position window is recessed into the top housing ensuring total valve closure. For ¾" and 1" valves the actuator mechanisms are housed in a tough heavy duty polyamide shell, providing excellent corrosion resistance and protection against accidental knocks. The 1½" actuator mechanism is enclosed in a heavy duty die cast aluminium housing providing excellent protection. All actuators are fully sealed to IP67 specifications to prevent water ingress. With a quick open and closing time of less than 12 seconds per direction these actuators have been manufactured with a long service life in mind, typically 70,000 to 100,000 life cycles. BLA Code Thread BSP Volts Max. Torque Nm Operating time in Sec Max. Power Watts Max. Pressure Mpa 136912 3?4" 12 2 5-7 4 1.6 136913 3?4" 24 2 5-7 4 1.6 136914 1" 12 2 5-7 4 1.6 136915 1" 24 2 5-7 4 1.6 136918 11?2" 12 20 10-12 40 2.5

SKU	BLA-136912
Brand	BLA
