Product Overview

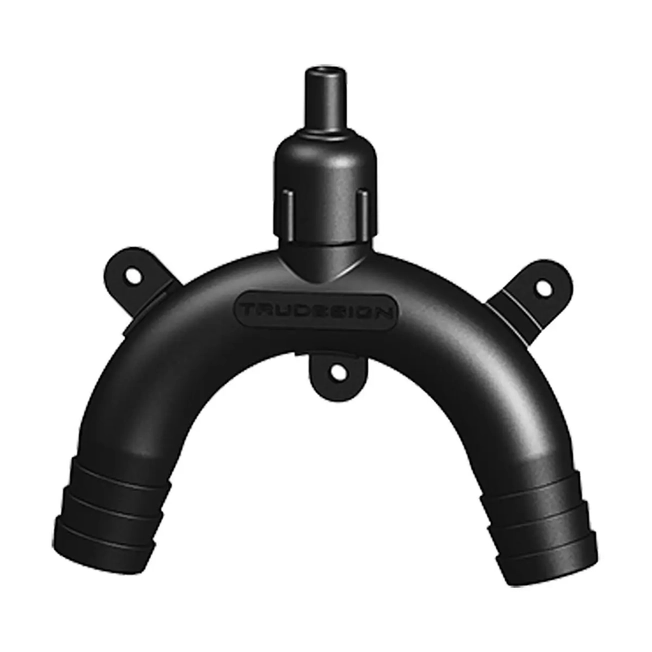

TruDesign® Vented Loops
TruDesign Vented Loops are the superior composite siphon break solutions for marine applications.
Vented Loops prevent water siphoning from underwater skin fittings back into a vessel and thereby guard against accidental flooding and sinking.
Vented loops are used predominantly in toilet to overboard applications, toilet inlet applications and holding tank to overboard applications.
They can also be used in genset or small engine inlet cooling water systems.
The duckbill one way valve is designed to seal even when particles are present in the fluid.
Features:
- Silicone duck bill valve - Long life with no perishing or hardening
- Constant internal diameter - No reduction in flow
- Self-contained mounting - 3 screw mounting posts give secure and easy installation
- Chemical resistant - Impervious to waste water and common toilet cleaning products
- UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun
- High quality surface finish - Will not discolour with green film as similar bronze fittings do
- Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C
BLA Code BLA Code Hose Size Height Width
White Black mm in mm mm
139067 139067BLK 19 ¾ 99 106
139068 139068BLK 25 1 126 147
139069 139069BLK 38 1½ 148 189
Accessories:
139079 Service Kit White
139079BLK Service Kit Black
| SKU | BLA-139067BLK |
| Brand | TruDesign |
