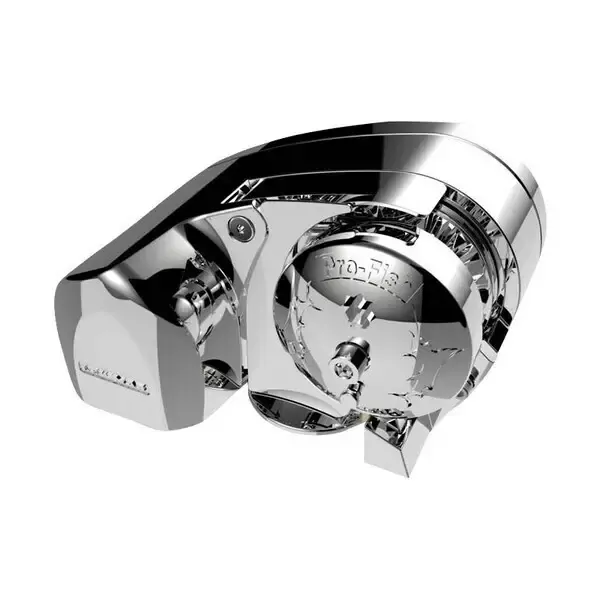

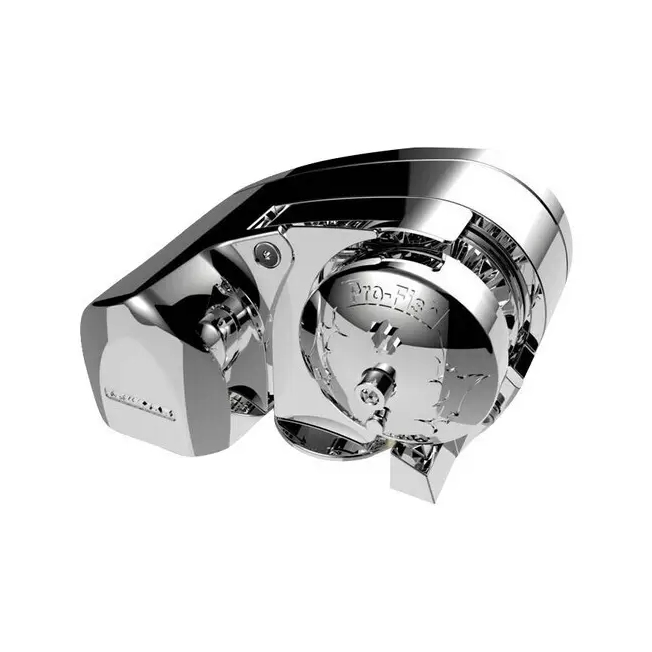

Lewmar® Horizontal Anchor Windlass - Pro-Fish Praised around the world by boaters and professionals alike, the horizontal Pro-Fish 700 and 1000 windlasses are outstanding examples of Lewmar?s commitment to providing quality products for boats ranging in length from 6m to 11.5m (20ft to 38ft). The range features an external housing manufactured from 100% 316 grade stainless steel creating an incredibly strong and durable anchoring system impervious to the elements. Each winch is supplied as a complete kit ready for installation and includes base gasket, fast mount studs, installation wrench, circuit breaker, dual direction solenoid and panel mount up/down rocker switch. Also included is a combination rope/chain gypsy with the ability to accept 6mm, 7mm (Pro-Fish 700), and 8mm (Pro-Fish 1000) short link chain together with 12mm (Pro-Fish 700), and 14mm to 16mm (Pro-Fish 1000) medium lay three strand or eight plait nylon rope (12mm and 16mm only). Operation is via a simple push button control and includes a built-in manual emergency recovery system using included handle/spanner or a 1/2" socket wrench (not included). The Pro-Fish 700 and Pro-Fish 1000 range features an automatic freefall system that allows for instant, accurate deployment of tackle at the touch of a button from the safety of the helm position. When retrieval is necessary the system automatically re-engages. Features: - Automatic freefall - Powerful motor for fast line retrieval - Manual emergency recovery system (included) - Durable 316 grade stainless steel construction - Stainless steel control arm and stripper for strength - Simple above deck installation - For boats 6m to 11.5m - 5 year warranty BLA Code Model Watts Volts Std Chain Std mm Rope mm Max Pull kg Work Load kg Max Chain Speed m/min Weight kg Boat Size m 154388 Pro-Fish 700 500 12 6/7 12 320 79 32 8.5 6-8.5 154390 Pro-Fish 1000 700 12 8 14-16 454 114 32 9.5 6-11.5 Standard Inclusions: 154486 Guarded remote up/down rocker switch 154504 Dual solenoid pack 154512 Circuit breaker panel mount 50A to suit 154388 154514 Circuit breaker panel mount 70A to suit 154390 SP15156248 Emergency recovery handle SP15156280 Rope guard upgrade kit (included in 2013+ models) Accessories: 154466 Grey down foot switch with closed cover 154468 Grey up foot switch with closed cover 154470 Stainless steel down foot switch with closed cover 154472 Stainless steel up foot switch with closed cover SP15156280 Rope guard upgrade kit (2007-2017 models) SP15156224 Replacement motor 700w Pro-Fish Series - Rope Guard Upgrade Kit 2007-2017 Models A complete rope guard and control arm upgrade kit designed to help prevent rope slippage and provide reduced rope jams under high speed free fall. Suitable for most older models sold between 2007 and 2017 that are not pre-installed with this kit. N.B. Boat size recommendation is for an average boat under average conditions and is a guide only.

SKU	BLA-154388
Brand	Lewmar
