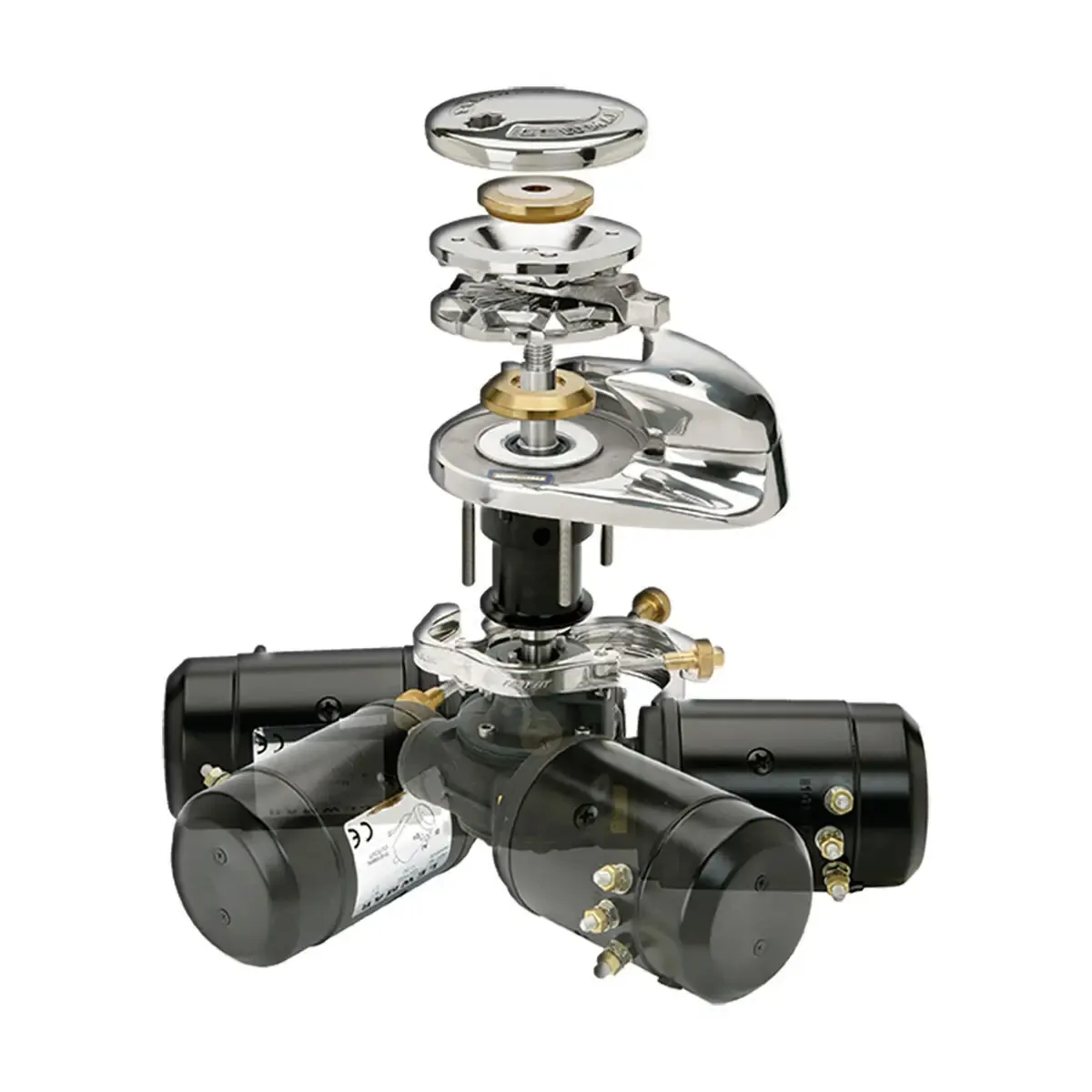

Lewmar® Vertical Anchor Windlass ? V1, V2 & V3 The V series of vertical windlasses features an industry leading external deck unit manufactured from precision cast 316 grade stainless steel. The V1, V2 and V3 are supplied with a rope/chain gypsy accepting 8mm or 10mm short link chain (model dependent) and 12 to 16mm three strand or eight plait medium lay nylon rope (12mm and 16mm only). The V1, V2 and V3 are fitted as standard with the Fall Safe anchor lock system preventing accidental deployment of the anchor. As an option the V1, V2 and V3 are available with a manual recovery winching system for use in the event of power loss (V1 including manual override - 154332). Features: - Cast 316 grade stainless steel external unit - Dual direction motor - Combination rope/chain gypsy - Heavy duty worm drive motor - Cone clutch for easy release - Chain counter ready - For boats 7m to 14m - 3 year warranty BLA Code Model Watts Volts Std Chain Std mm Rope mm Max Pull kg Work Load kg Max Chain Speed m/min Weight kg Boat Size m 154330 V1 Gypsy Only 700 12 8 12-16 454 113 19 19 9-12 154340 V2 Gypsy Only/FF 700 12 8 12-16 650 163 21 19 10-13 154338 V2 Gypsy Only/FF 700 12 10 12-16 650 163 21 19 10-13 154341 V2 Gypsy Only/FF 900 24 8 12-16 760 180 24 19 10-13 154339 V2 Gypsy Only/FF 900 24 10 12-16 760 180 24 19 10-13 154342 V2 Gypsy Drum/FF 700 12 8 12-16 650 163 21 22 10-13 154343 V2 Gypsy Drum 700 12 10 12-16 650 163 21 22 10-13 154344 V2 Gypsy Drum/FF 900 24 8 12-16 760 180 24 22 10-13 154346 V3 Gypsy Only 1000 12 10 12-16 890 215 28 21.5 11-14 154345 V2 Gypsy Drum 900 24 10 12-16 760 180 24 22 10-13 154348 V3 Gypsy Only 1000 12 8 12-16 890 215 28 21.5 11-14 154349 V3 Gypsy Only 1000 24 8 12-16 1020 243 30 21.5 11-14 154347 V3 Gypsy Only/FF 1000 24 10 12-16 1020 243 30 21.5 11-14 154356 V3 Gypsy Drum 1000 12 8 12-16 890 215 28 24.5 11-14 154357 V3 Gypsy Drum 1000 12 10 12-16 890 215 28 24.5 11-14 Standard Inclusions: 154486 Guarded remote up/down rocker switch 154502 Dual 12V solenoid to suit V1/2/3/5 154512 Circuit breaker panel mount 50A* 154516 Circuit breaker panel mount 90A* 154518 Circuit breaker panel mount 110A* *Model dependent Accessories: 154466 Grey down foot switch with closed cover 154468 Grey up foot switch with closed cover 154470 Stainless steel down foot switch with closed cover 154472 Stainless steel up foot switch with closed cover 154544 Digital chain counter - dash 154545 Digital wireless chain counter & winch control - dash 154546 Digital chain counter & winch control - dash 154548 Wireless chain counter & digital winch control - hand 154566 Gypsy Lewmar® V1/2/3 8mm 154570 Gypsy Lewmar® V1/2/3 10mm 154609 Manual recovery kit - gypsy only 154610 Manual recovery kit - gypsy drum SP15156284 Manual Pawl Kit N.B. Boat size recommendation is for an average boat under average conditions and is a guide only.

SKU	BLA-154340
Brand	Lewmar
