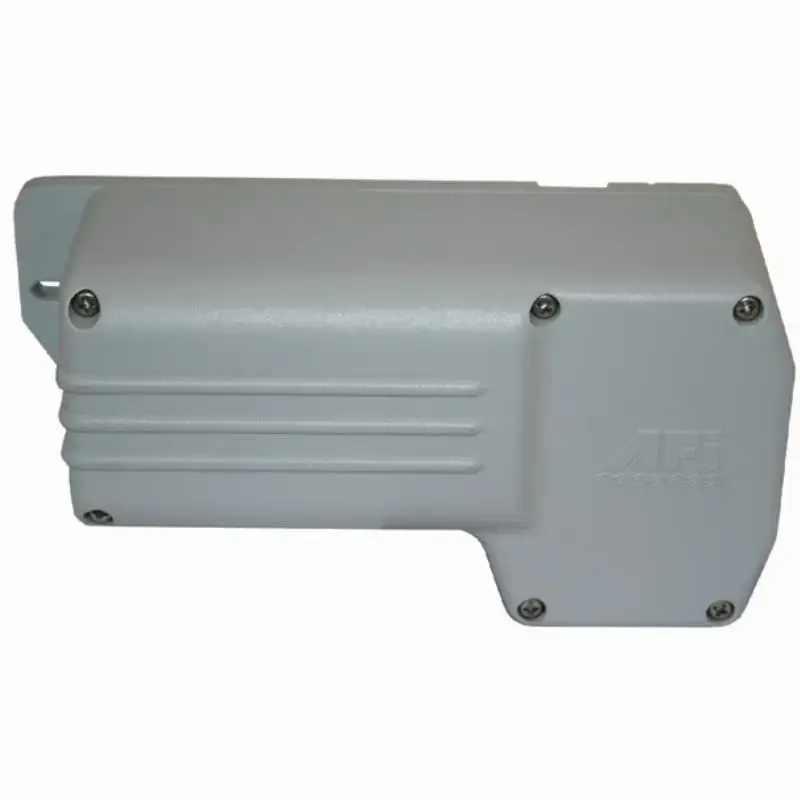

Wiper AFI 2.5 110Deg 12v
These AFI heavy duty wiper motors suit a variety of arms and blades shown on following pages. The 1.5 motor will power up to 500mm arm/blade length, 2.5 motor up to 600mm arm/blade length. 2 Powerful motor sizes available. Fully waterproof Fully sealed grey powder coated aluminium waterproof housing 50mm length solid chrome brass drive shaft and knurled nut 2 speed motor (can be wired for single speed) Coast to park feature. Adjustable right or left park RF shielded circuitry 80 or 110 deg sweep angle. Adjustable 45, 60, 80 or 110 degrees Includes sealed 150mm length wires with fuse & fuse holder Full 3 year limited warranty. CE certified Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted. AFI 1.5 Wiper Motor AFI 2.5 Wiper Motor Powers up to 500mm (20") length arm and blade combination. 80 or 110 deg sweep angle motors. No load current up to 1.2 amp. Stall current 13 amps. Powers up to 600mm (24") length arm and blade combination. Available in 12v or 24v. 80 or 110 degree sweep. Sweep is also adjustable. No load current to 1.6 amp. Stall current 10.5 amps. Stall torque 125kgf/cm 12.3 Nm Length : 197mm, width : 101mm Depth : 71mm - plus drive arm. Stall torque 160 kgf/cm 15.7 Nm Length : 201mm, width : 108mm Depth : 77mm - plus drive arm.
