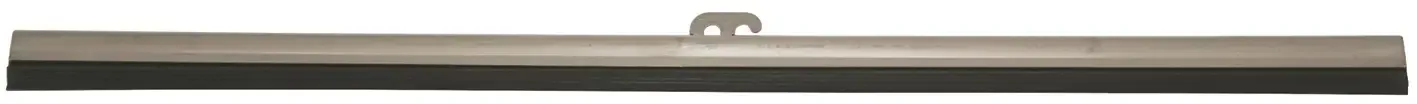

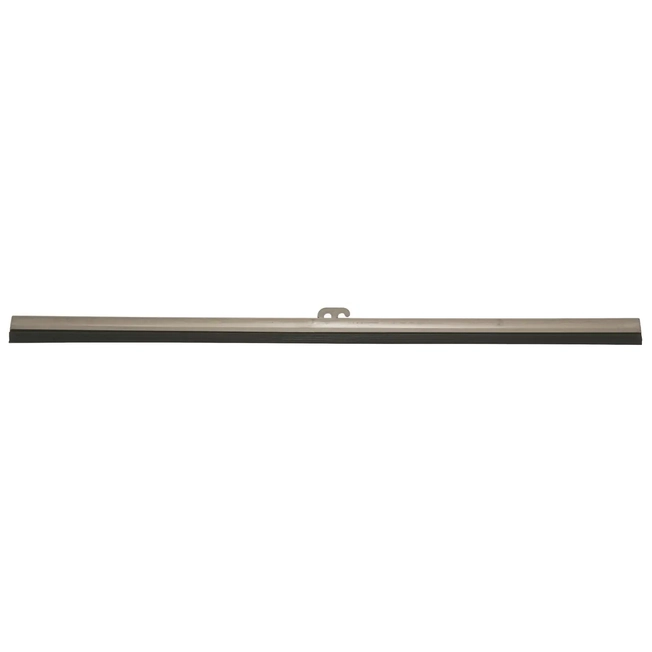

Wiper Blade 280mm Hook-On
Compact ? exible impeller pump for engine cooling or bilge pump applications. Mechanical seal offers long life and reliability for commercial duty installations. Double row angular contact bearings allow a compact, short length pump. Self priming up to 4.5 metre vertical lift. 15,000 litres per hour (3,300 GPH) capacity at 3 metre total head @ 1,500 RPM.
Pump size : 204mm Lx 150mm W x 120mm H. 1 1/2" female BSP ports. Supplied with neoprene impeller as standard. Should not be run dry.
SKU
Details
JABSCO
SKU
Details
JABSCO
J50-125
1 1/2" BSP pump
52200-2011
J55-214
Cam - full
834
J53-513
Impeller - neoprene
17935-0001
J55-005
Service kit neoprene
SK407-0011
J55-227
Seal
21849 / 6408-0000
J55-217
Cam screw
SP1005-04
J53-520
Impeller - nitrile
836-0003
J55-008
Service kit Nitrile
SK407-0003
J55-181
Bearing
SP2600-04
J55-210
End cover
9336
J55-177
Oil seal
SP2701-1013B
J55-211
Gasket
816-0000
J55-200
Seal
SP2700-50
J55-212
End cover screw
X3001-176FB
J55-245
Shaft
52207-0000
J55-213
Wearplate
2574-0000
