Product Overview

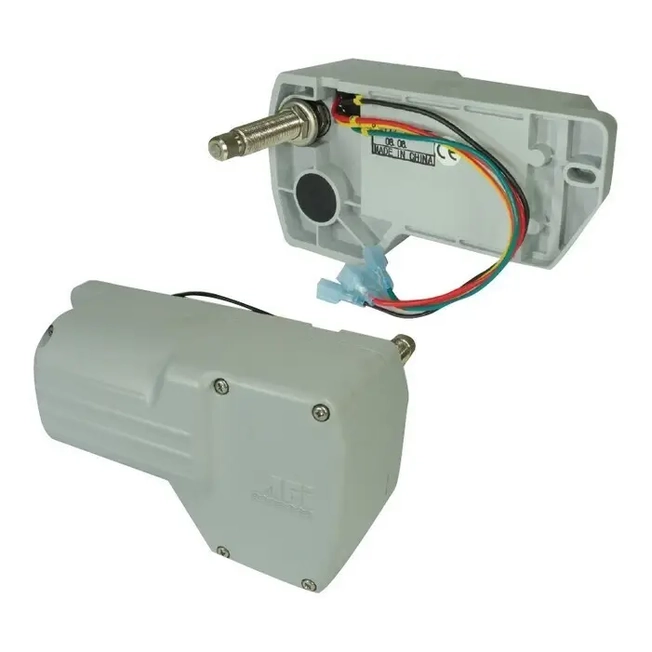

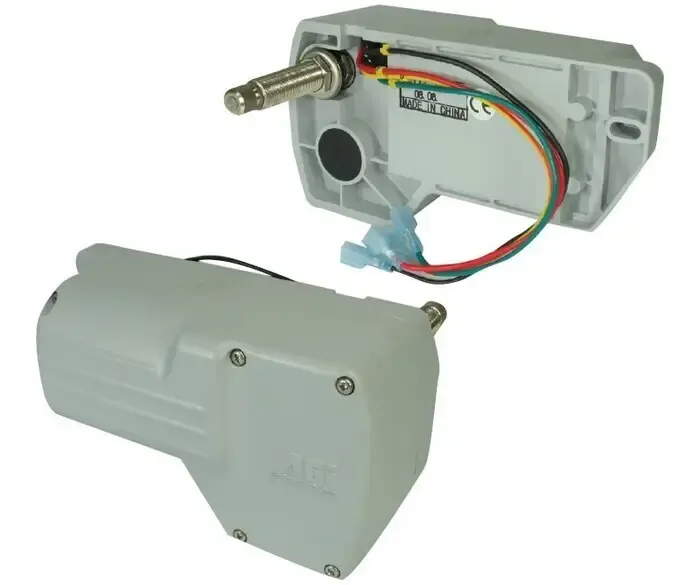

Marinco® AFI 2.5 Waterproof Wiper Motors Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps. For suitable wiper arm combinations see page 262. Features: - Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft - M16 Brass shaft - Factory pre-set sweep angles of 110°, with easy adjustment to 45°, 60° or 80° - Two speed motor - Coast to park with adjustable right or left self parking - Sealed 150mm 16AWG wire leads, with RF shielded circuitry - Stall torque: 160 kgf/cm; 15.7 Nm (139 in ? lbs) - Stall current: 9 ? 10.5 amps at 12V - No load current: 1 ? 1.6 amps at 12V - 3 year warranty BLA Code Volts Motor Length mm Motor Depth mm Motor Width mm Thread Shaft Length mm Overall Shaft Length mm 116096 12 201 76.8 108 50 65
| SKU | BLA-116096 |
| Brand | Marinco |
Ratings & Reviews
Be The First To Review This Product!
Help other Marine Depot users shop smarter by writing reviews for products you have purchased.
Have a question
Product Overview
Marinco® AFI 2.5 Waterproof Wiper Motors Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps. For suitable wiper arm combinations see page 262. Features: - Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft - M16 Brass shaft - Factory pre-set sweep angles of 110°, with easy adjustment to 45°, 60° or 80° - Two speed motor - Coast to park with adjustable right or left self parking - Sealed 150mm 16AWG wire leads, with RF shielded circuitry - Stall torque: 160 kgf/cm; 15.7 Nm (139 in ? lbs) - Stall current: 9 ? 10.5 amps at 12V - No load current: 1 ? 1.6 amps at 12V - 3 year warranty BLA Code Volts Motor Length mm Motor Depth mm Motor Width mm Thread Shaft Length mm Overall Shaft Length mm 116096 12 201 76.8 108 50 65
| SKU | BLA-116096 |
| Brand | Marinco |
Ratings & Reviews
Be The First To Review This Product!
Help other Marine Depot users shop smarter by writing reviews for products you have purchased.
More from this category
$130.43 $141.00
$10.57 off RRP of $141.00
$104.41 $109.90
$5.49 off RRP of $109.90
